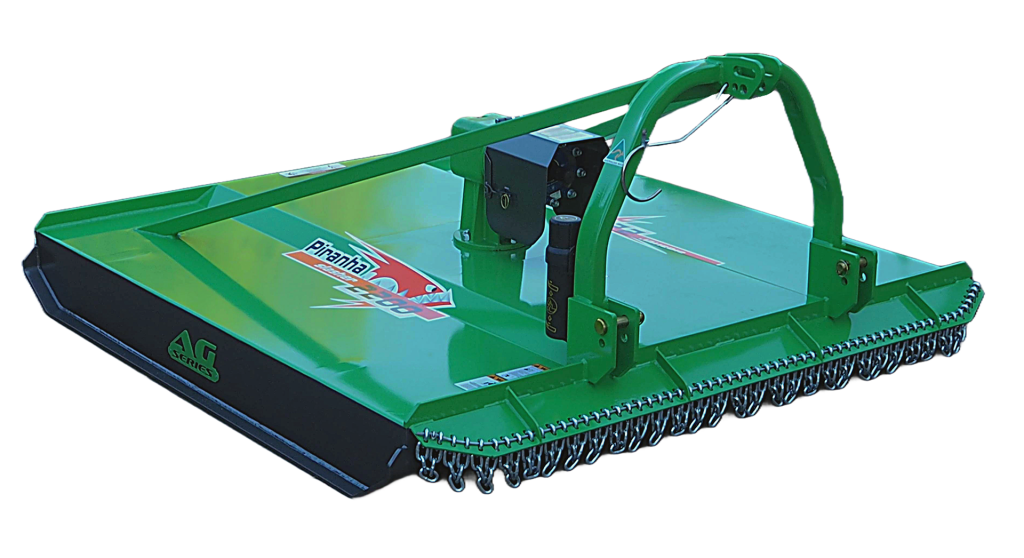

Single Rotor

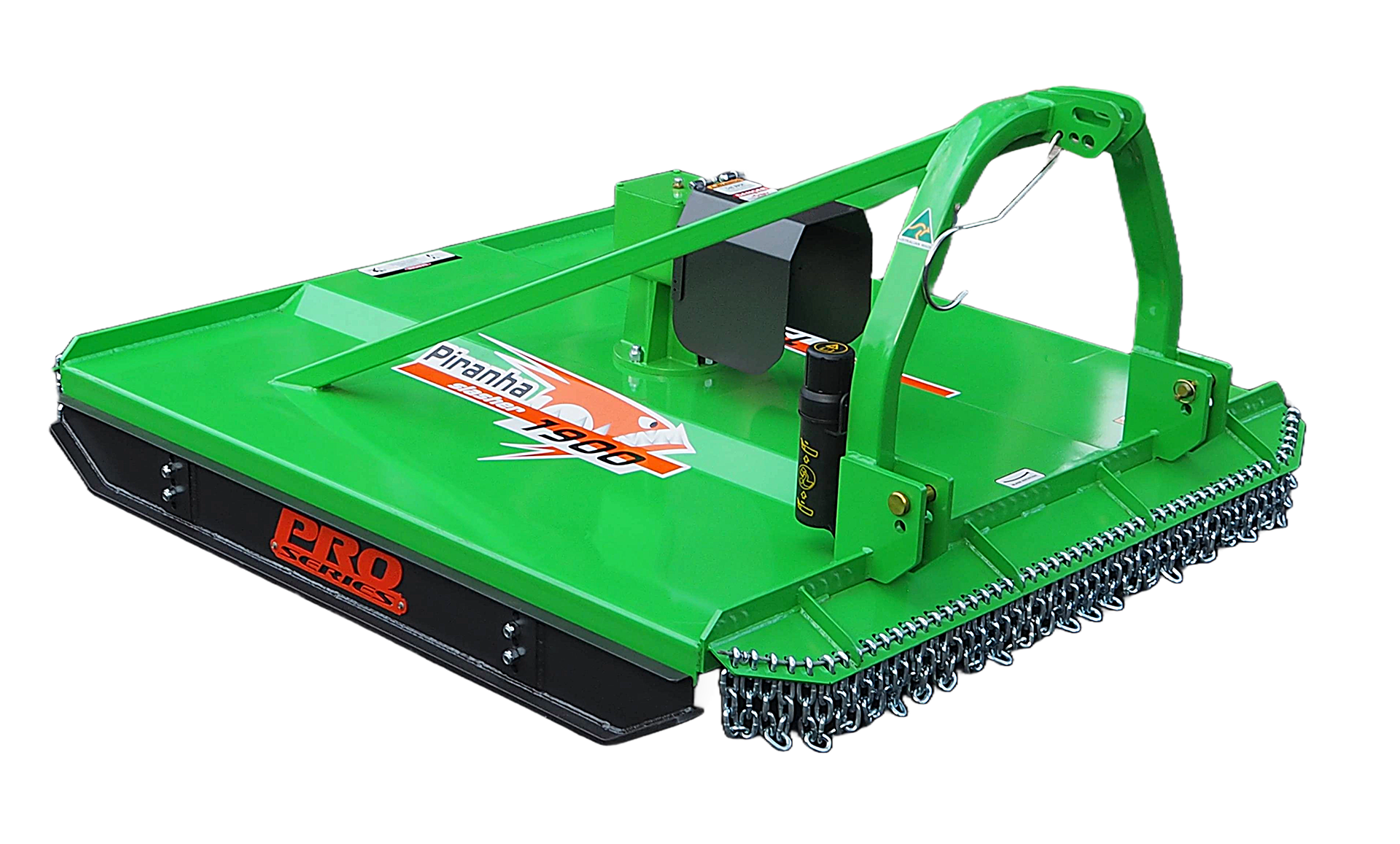

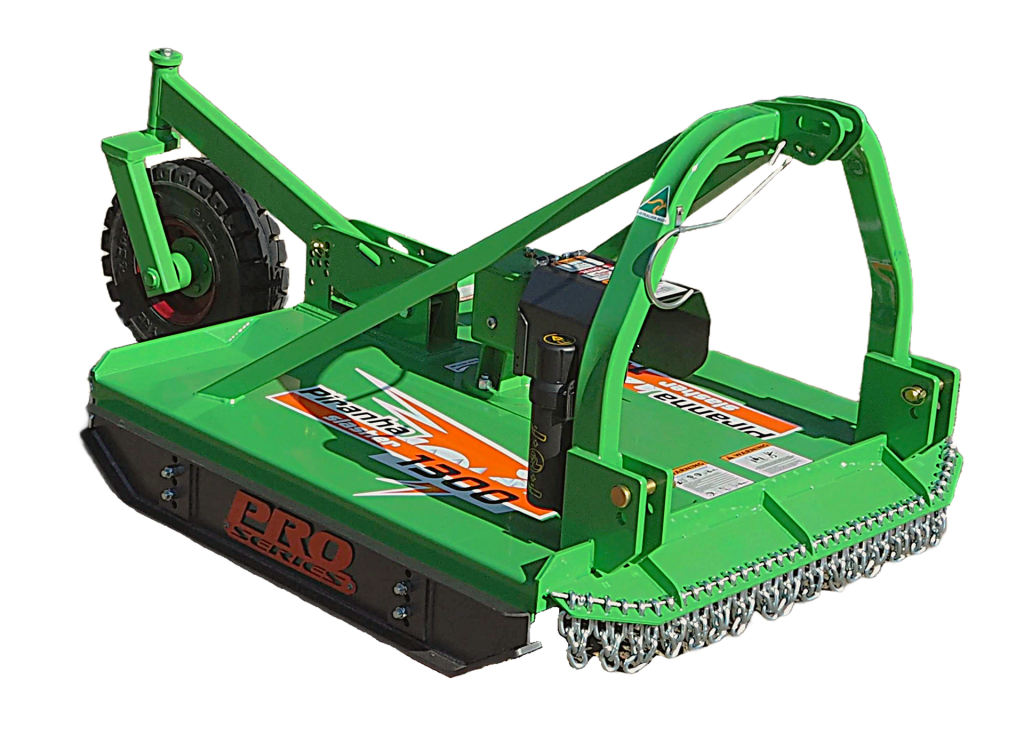

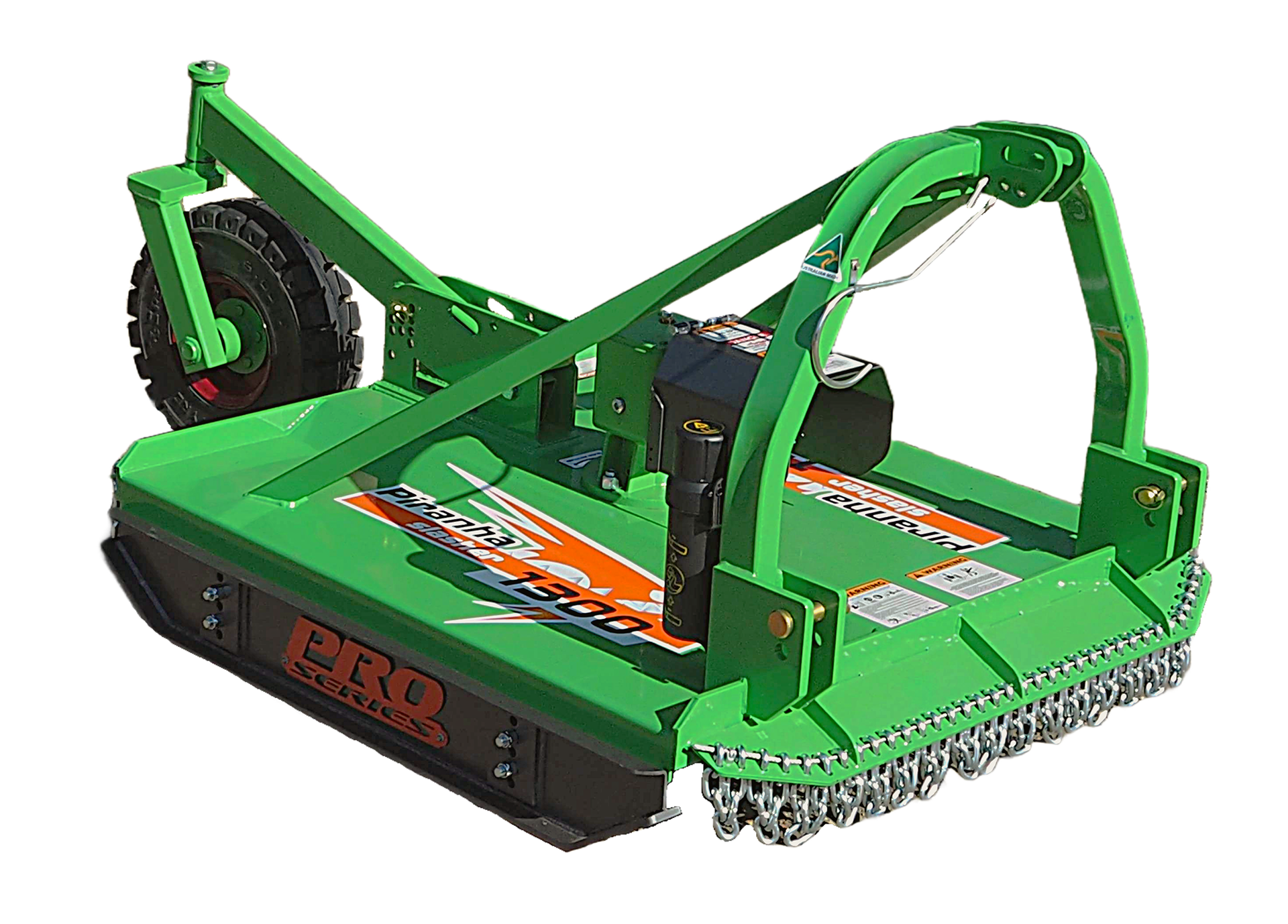

Built for durability and performance, the Piranha Single Rotor Slashers are designed for tractors ranging from 35-100hp. Available in four sizes, they feature a reinforced, easy-clean deck, heavy-duty headstock options, and advanced safety chain curtains. With a choice of 50hp, 75hp, or 100hp gearboxes and a robust drive system, these slashers offer reliability and ease of maintenance. Custom half sizes are also available on request.

Versatile Hitch Compatibility

Dual Category pick up pins Cat 1 & 2 with slotted link for contour following.

Enhanced Safety & Durability

Zinc plated 10mm front and rear safety chain curtains with wire rope replacement system.

Built to Industry Standards

All Piranha Slashers comply with the Australian Industry Standards February 2011.

Peace of Mind Warranty

Exclusive 2-year Warranty (Ag Series) or 3-year Warranty (Pro Series) on all Piranha Slashers.

Features

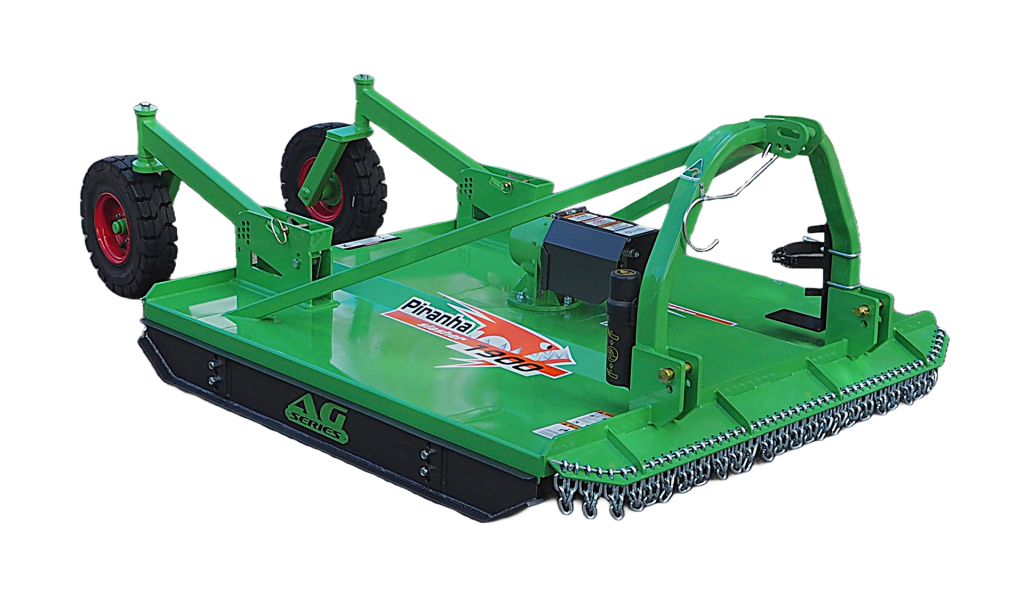

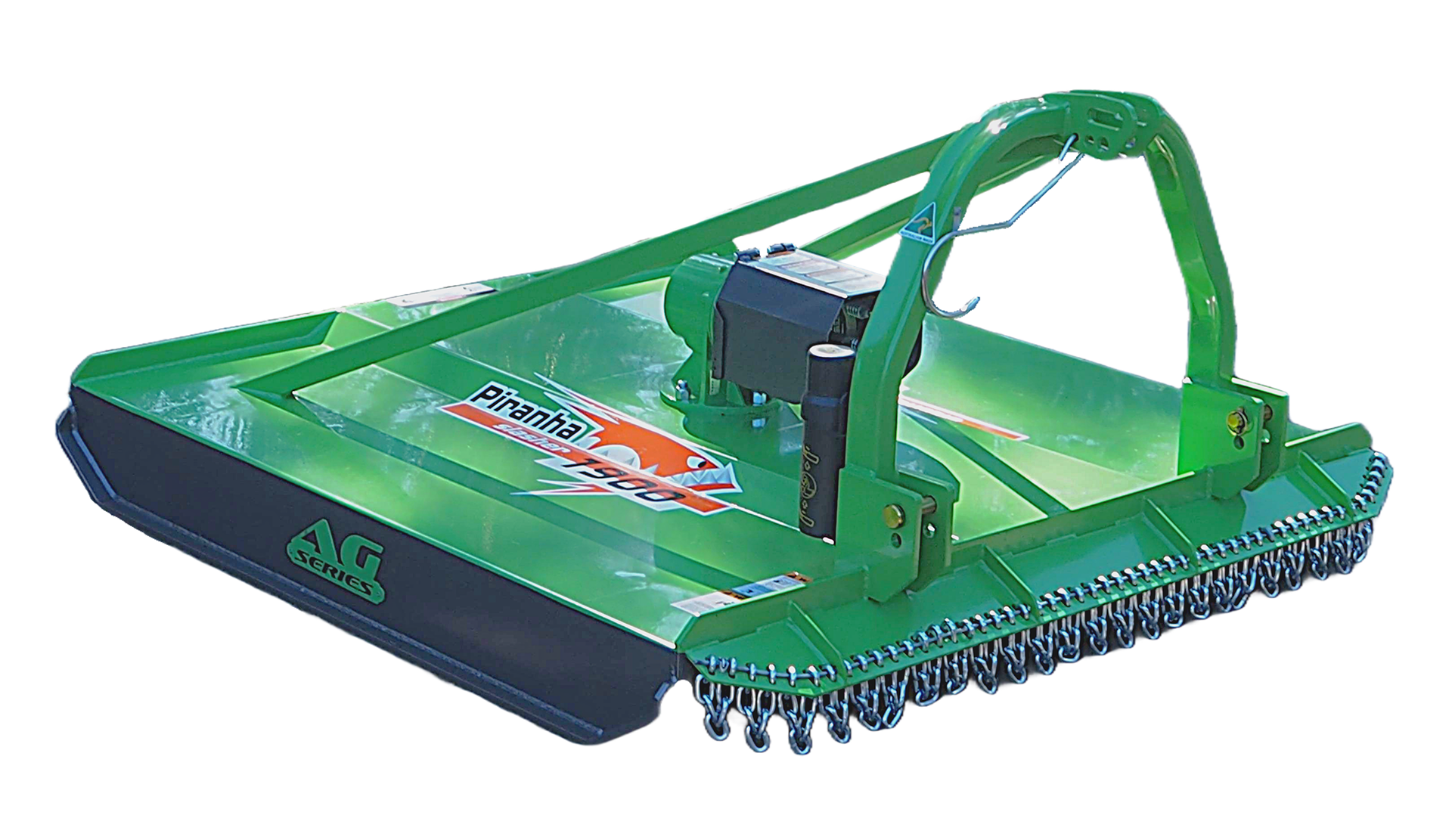

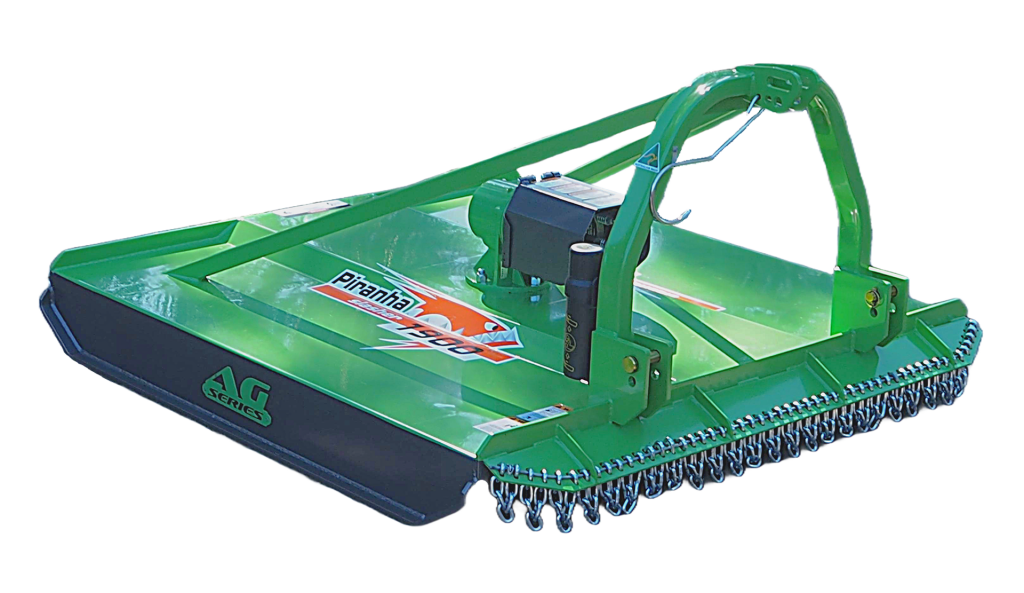

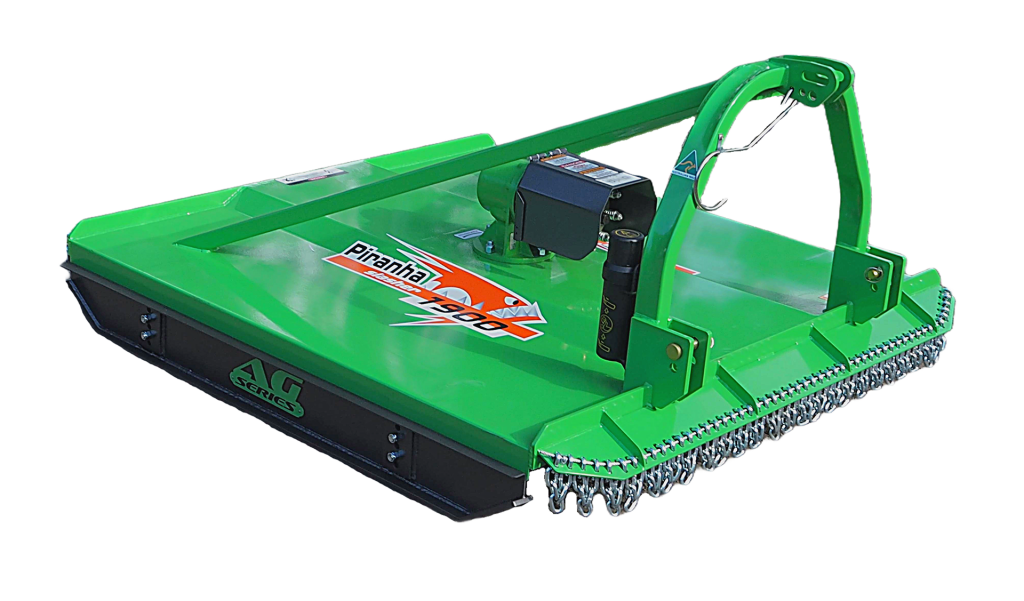

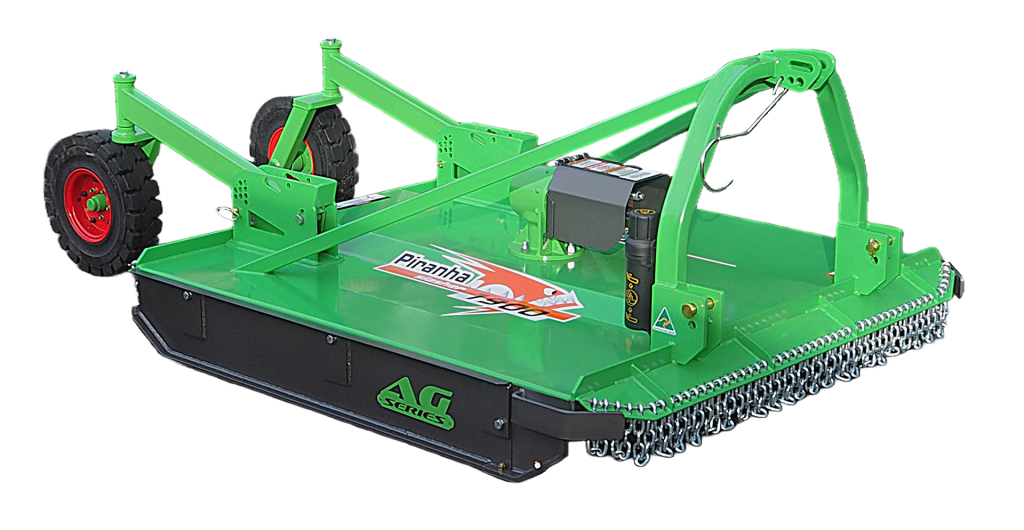

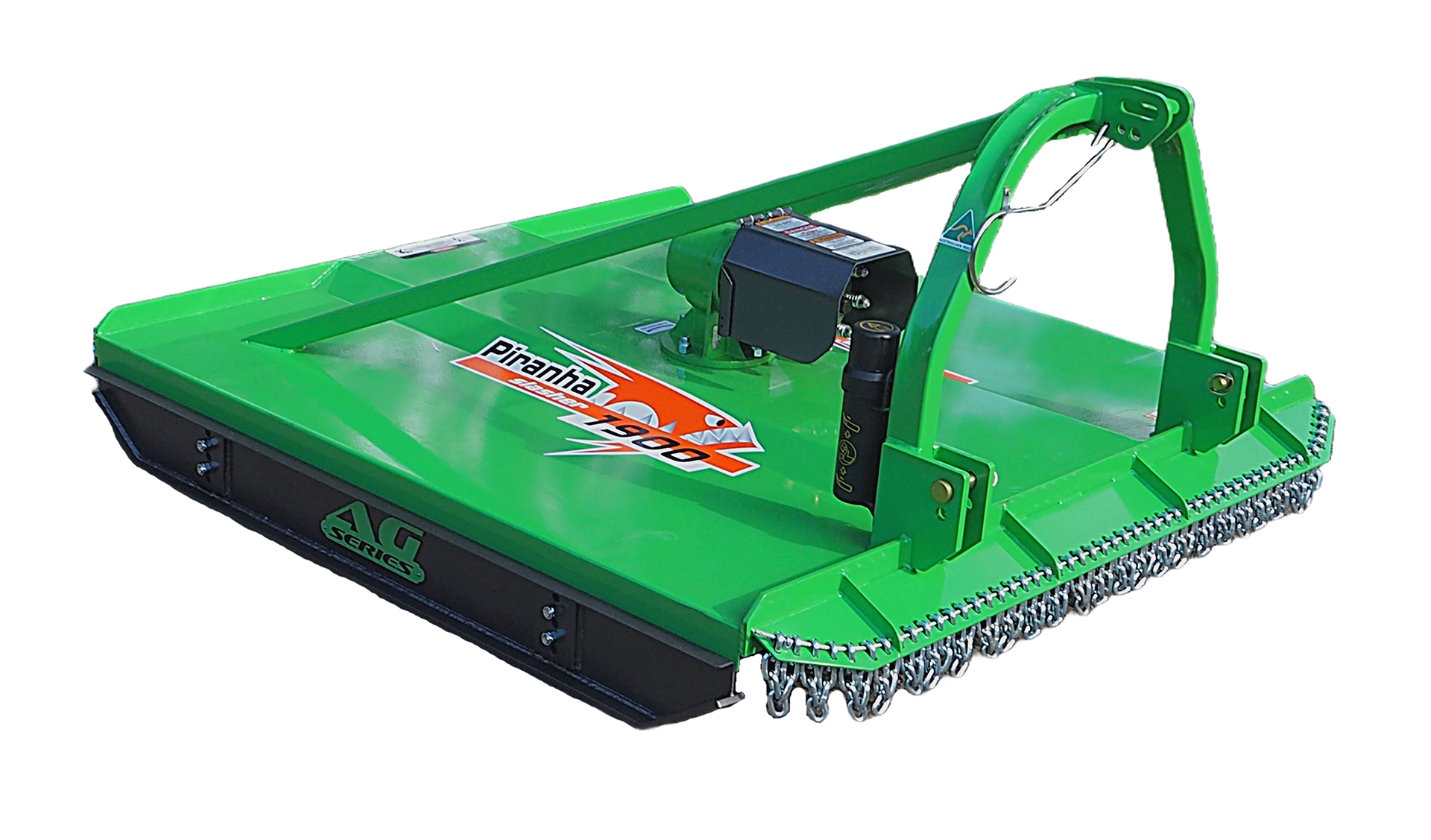

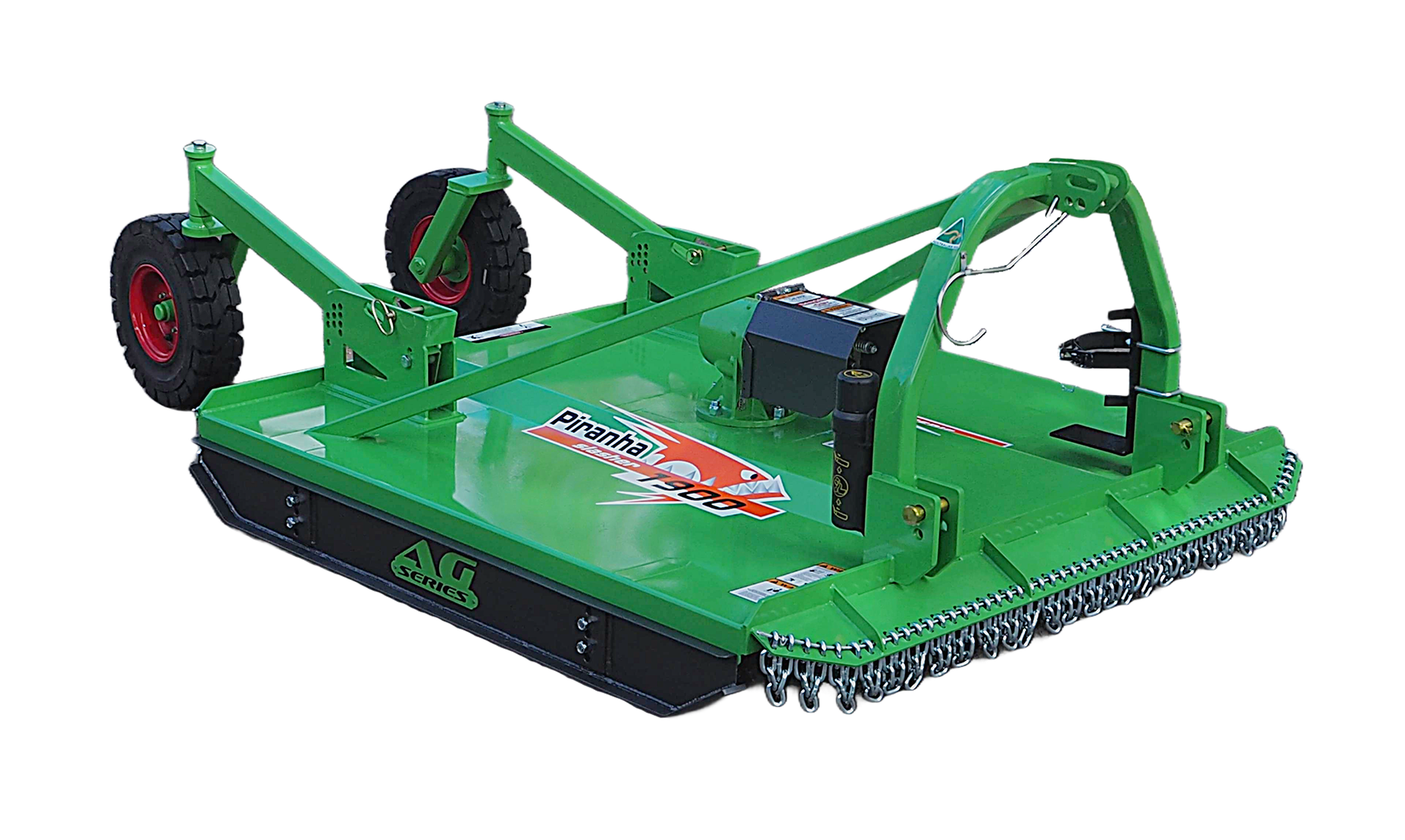

Ag Series

One piece folded and fully reinforced HU300 grade 4mm main deck with a easy-clean top design.
Dual Category pick up pins Cat 1 & 2 with slotted link for contour following.

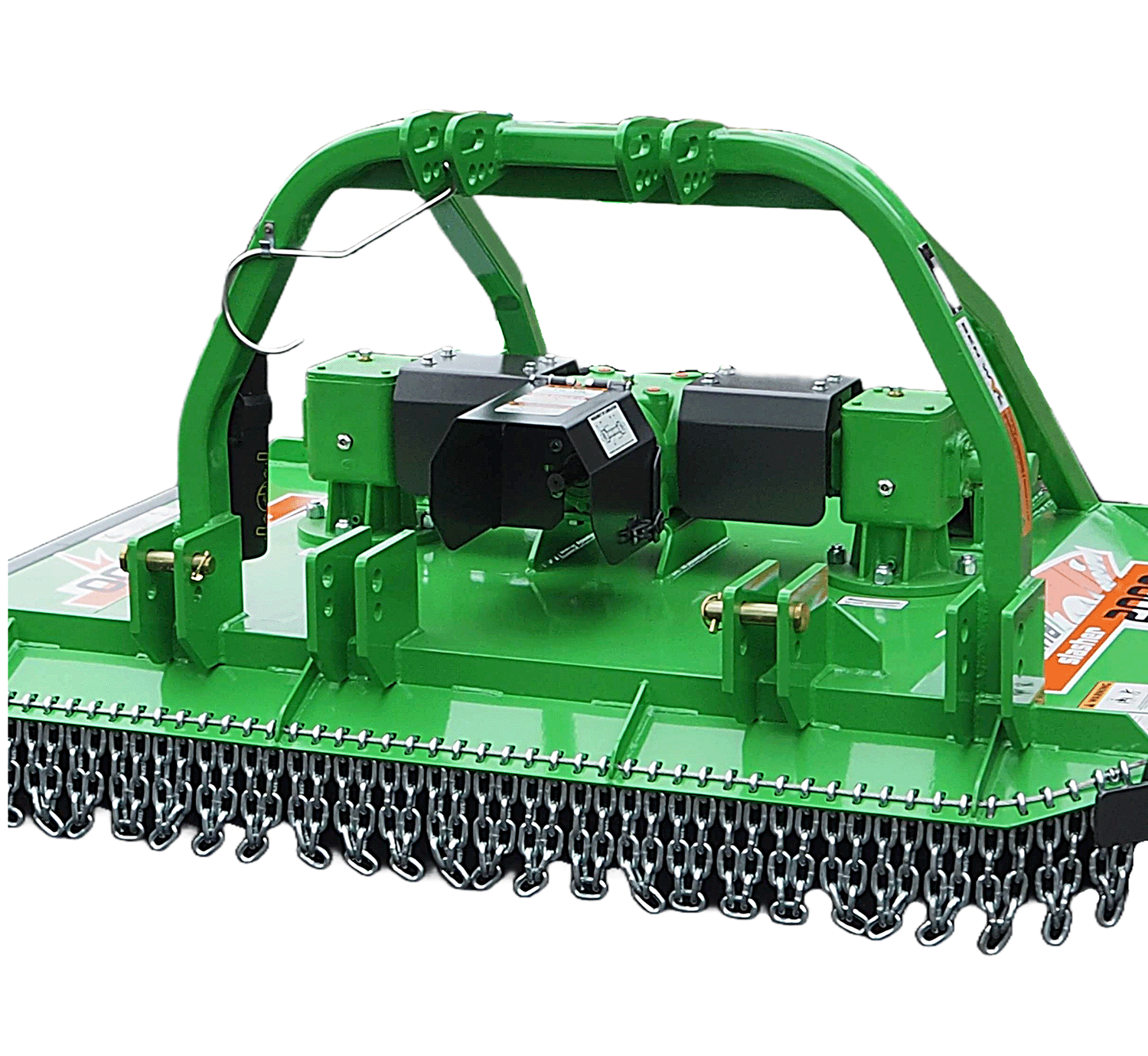

Heavy duty rolled hollow section headstock with RHS rear support arms for ultimate deck strength which is available in either Centre Mount, Offset or Double Headstock.
Zinc plated 10mm Front and rear safety chain curtains with wire rope replacement system.
Choice of 40hp, 75hp or 100hp gearboxes.
Drive line is protected by either a 2 or 4 plate friction slip clutch and is covered by a hinged flip-up cover for easy PTO attaching and serviceability.

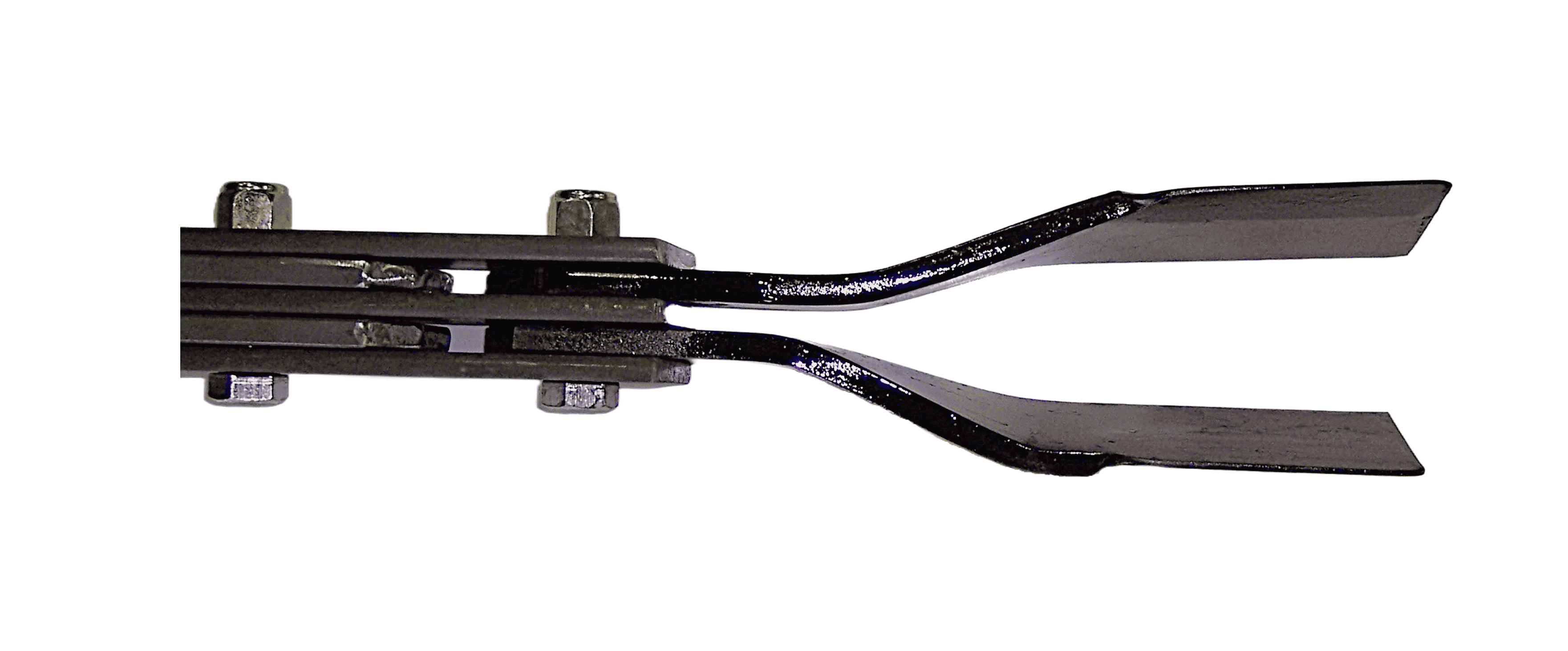

Laminated spring steel blade beam with hardened dip down twisted mulching blades on a hardened swing back bush, or the optional dual blade mulching kit.
Option for Fixed Sides (rear delivery), Adjustable Sides (adjustable height) or Single Side Delivery (both rear and side delivery).
Half sizes are available on request, e.g. 1750mm wide.

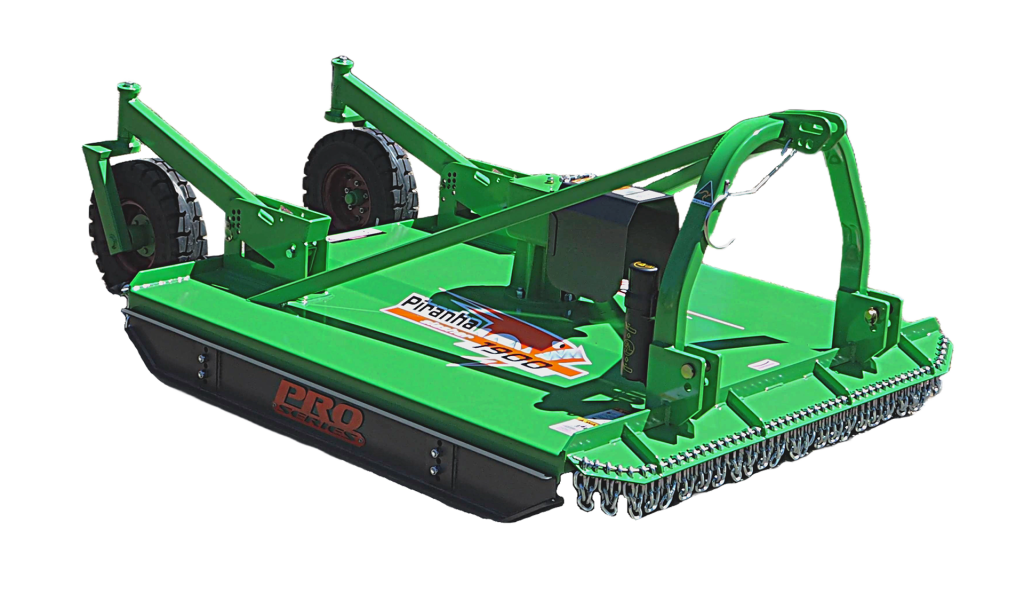

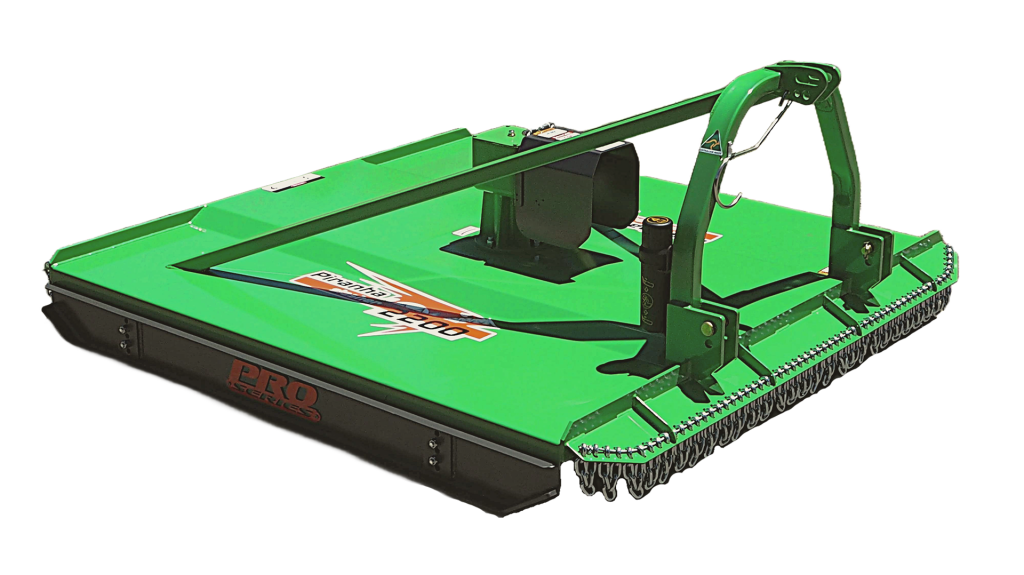

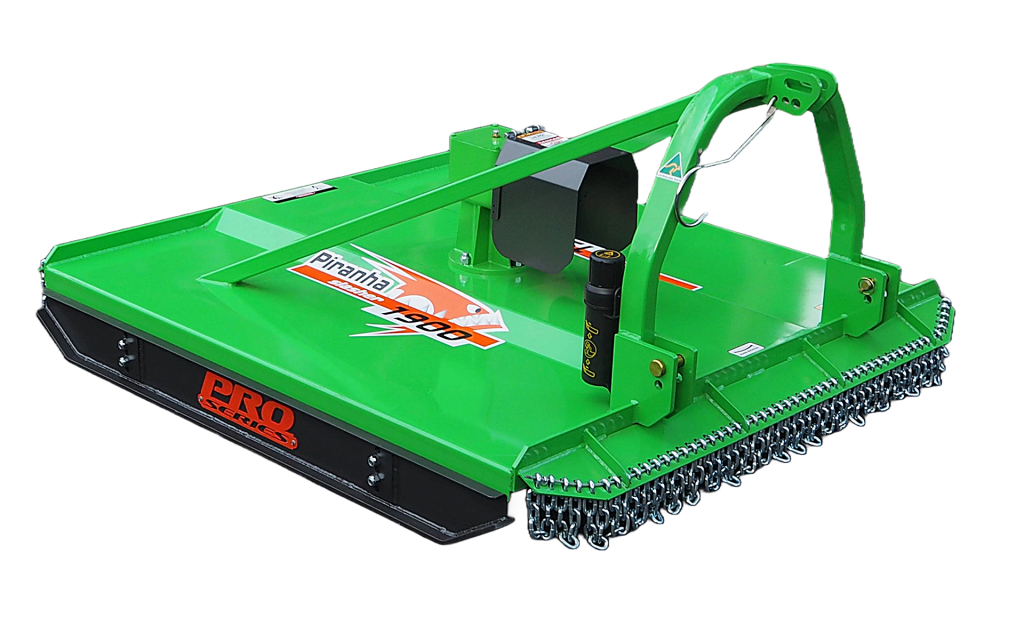

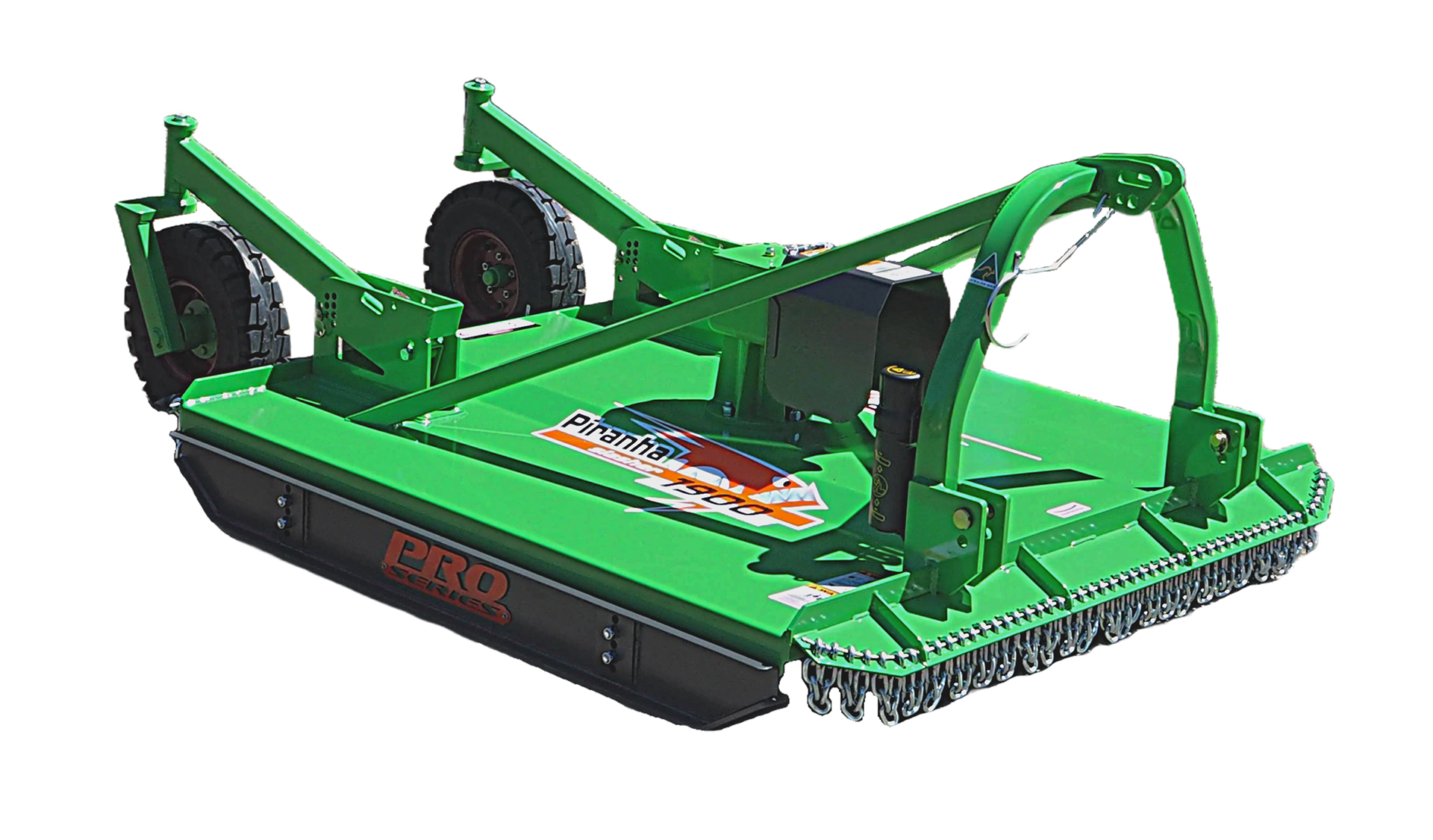

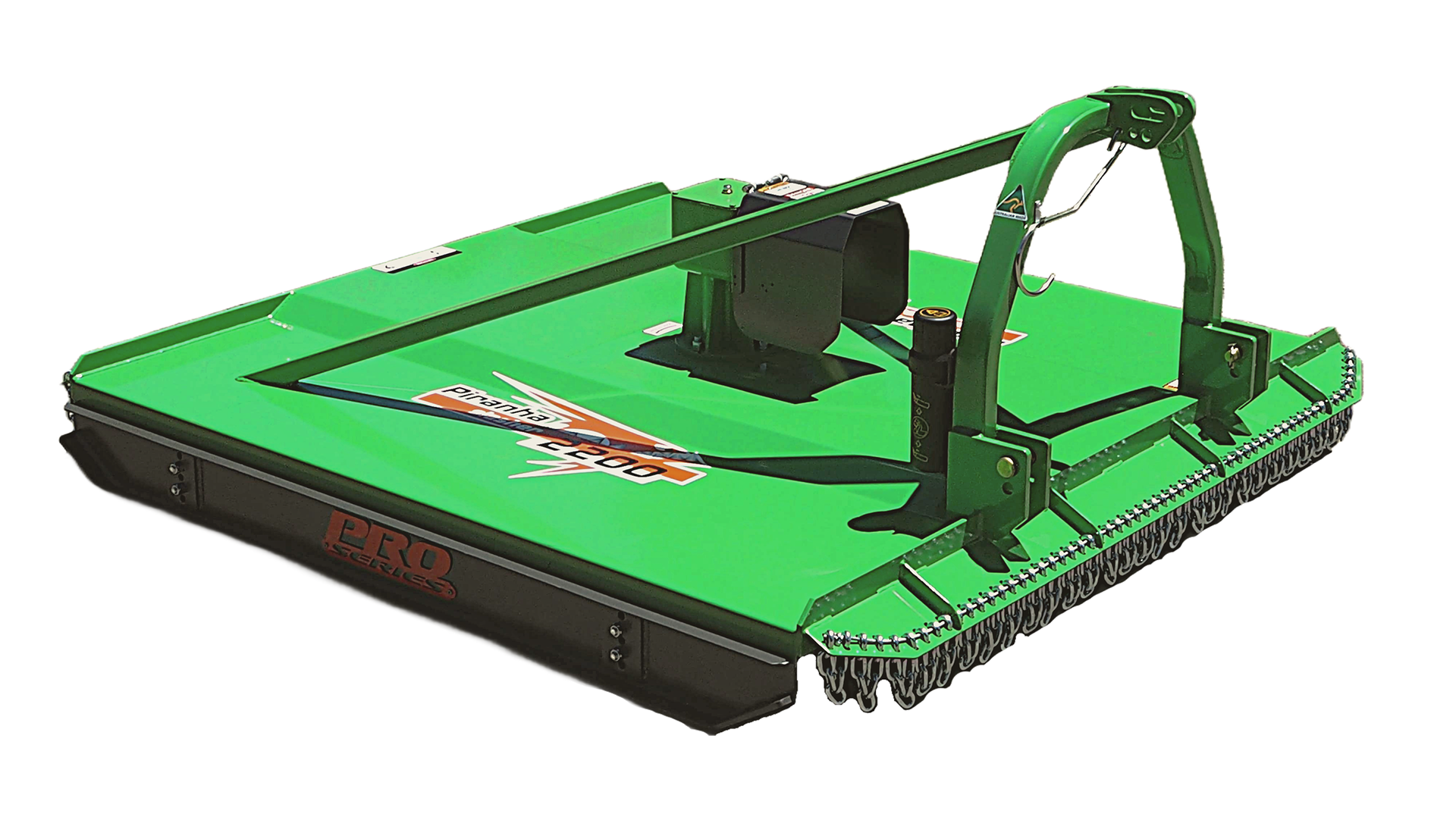

Pro Series

One piece folded and fully reinforced HU350 grade 5mm main deck with a easy-clean top design.
Dual Category pick up pins Cat 1 & 2 with slotted link for contour following.
Heavy duty rolled hollow section headstock with RHS rear support arms for ultimate deck strength which is available in either Centre Mount, Offset or Double Headstock.
Zinc plated 10mm Front and rear safety chain curtains with wire rope replacement system.
Choice of 40hp, 75hp or 90hp gearboxes.
Drive shaft is a telescopic trilobal profile with either a T60 or T80 Series shaft and has a hinged flip-up cover for easy PTO attaching and serviceability.
Laminated spring steel blade beam with hardened dip down twisted mulching blades on a hardened swing back bush, or the optional dual blade mulching kit.
Option for Fixed Sides (rear delivery), Adjustable Sides (adjustable height) or Single Side Delivery (both rear and side delivery).
Half sizes are available on request, e.g. 1750mm wide.

Explore our videos

Built Tough for Precision Cutting

Model Specifications

1300

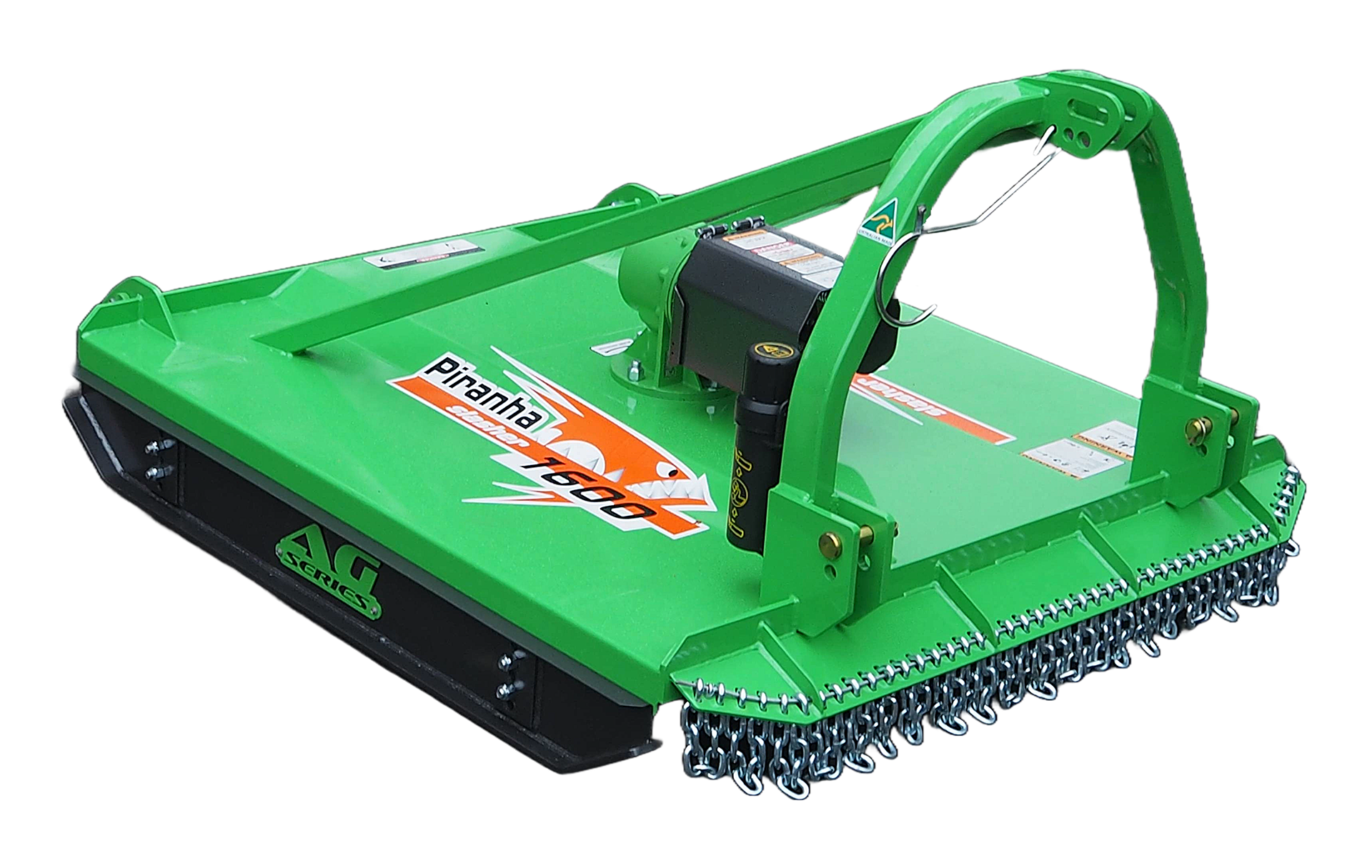

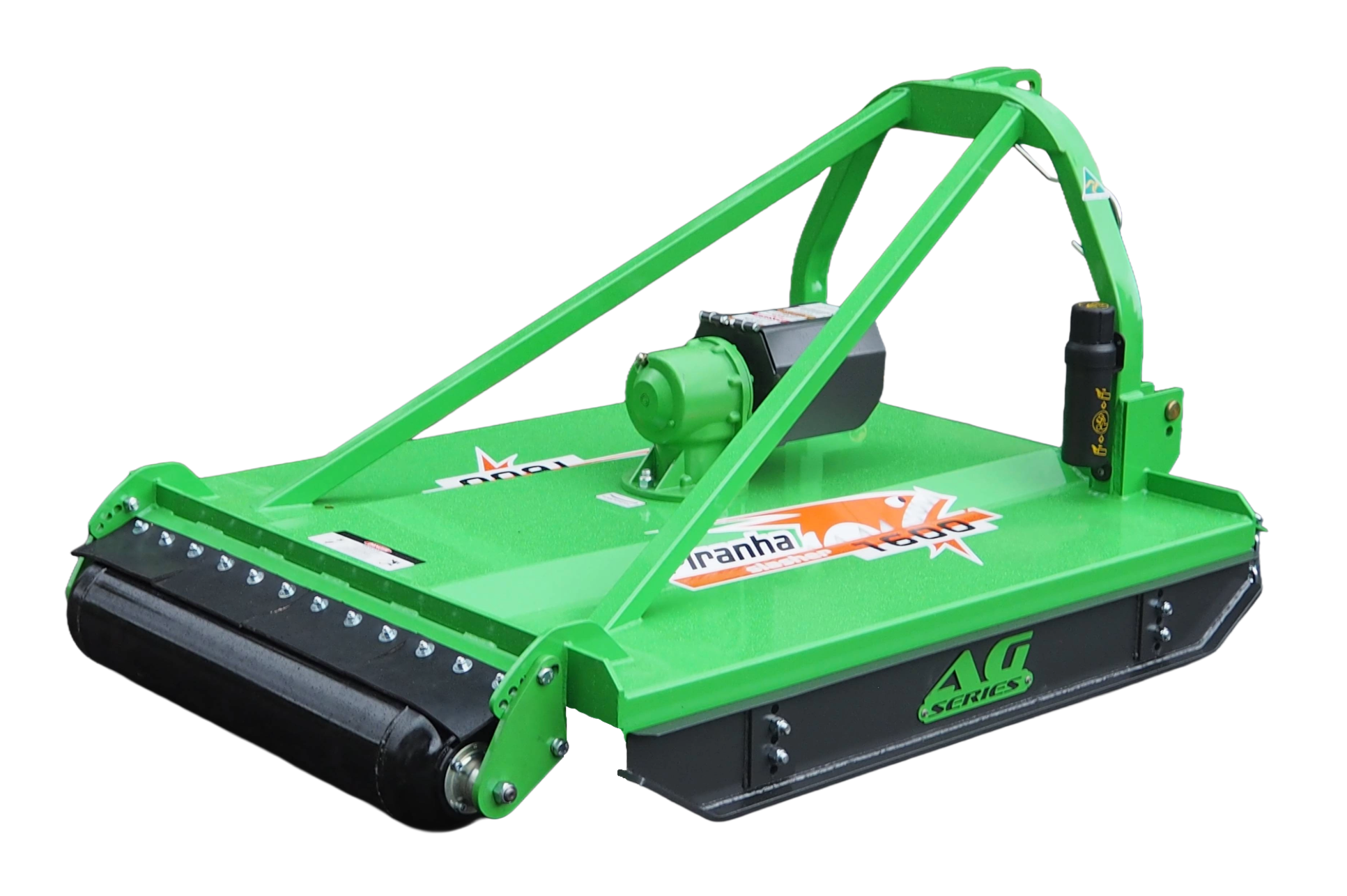

1600

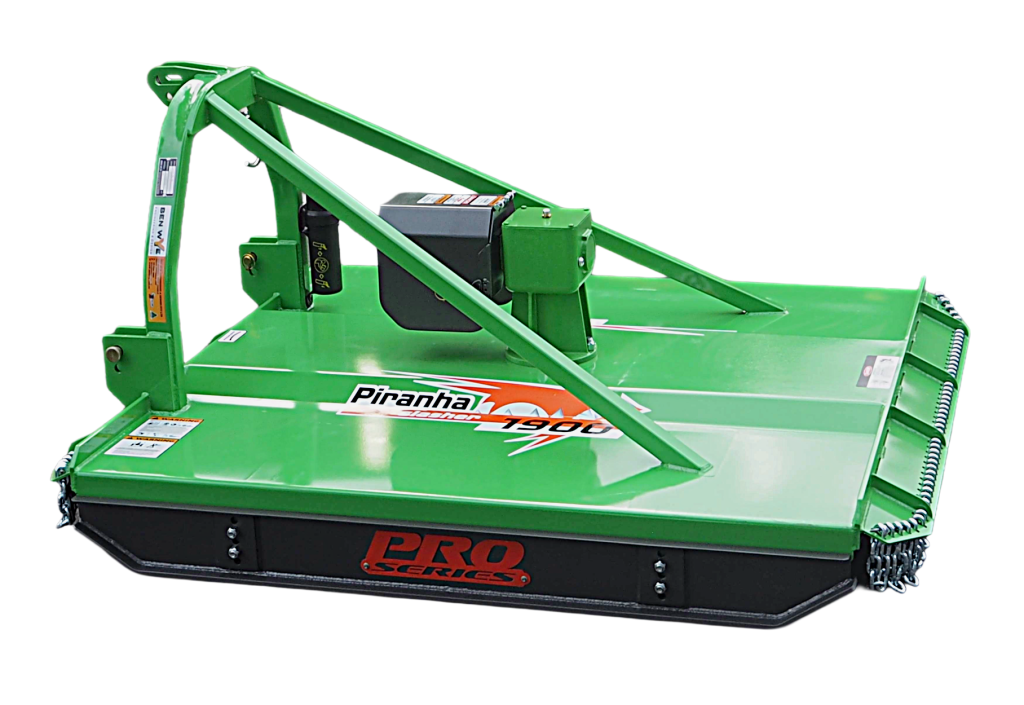

1900
2200

Feature	Ag Series	Pro Series
Features
Machine Weight	250kg	260kg
Hitch	Cat 1 & 2	Cat 1 & 2
Cutting Width	1190mm	1190mm
Overall Width	1320mm	1320mm
Overall Depth	1450mm	1450mm
Deck Height	260mm	260mm
Transport Height	980mm	980mm
Recommended Tractor hp	30-50hp	30-75hp
Speed (RPM)	540	540
Gearbox
Gearbox	50hp	75hp
Input Shaft	1 3/8 z6	1 3/8 z6
Gearbox Lubricant	SAE 80W-90	SAE 80W-90
Construction
Deck Construction	All Welded	All Welded
Deck Thickness	4mm	5mm
Side Thickness	4mm	5mm
Skid	12mm	12mm
Blades
Blade Beam	Laminated Spring Steel Beam	Laminated Spring Steel Beam
Blades Standard	BL6002 (LH Rotation)	BL6002 (LH Rotation)
Blade Bolts	3/4 shank Grade 8 Z/P	3/4 shank Grade 8 Z/P
Driveline
Drive Shaft	Series 4	Series 6
Drive Line Protection	2 Plate friction Clutch	2 Plate friction Clutch
Guarding
Front Guard	10mm z/p chain curtain	10mm z/p chain curtain
Rear Guard	10mm z/p chain curtain	10mm z/p chain curtain
Gearbox	Ezy acces Flip Up	Ezy acces Flip Up

Feature	Ag Series	Pro Series
Features
Machine Weight	345kg	390kg
Hitch	Cat 1 & 2	Cat 1 & 2
Cutting Width	1460mm	1460mm
Overall Width	1580mm	1580mm
Overall Depth	1900mm	1900mm
Deck Height	260mm	260mm
Transport Height	980mm	980mm
Recommended Tractor hp	30-80hp	30-80hp
Speed (RPM)	540	540
Gearbox
Gearbox	75hp	75hp
Input Shaft	1 3/8 z6	1 3/8 z6
Gearbox Lubricant	SAE 80W-90	SAE 80W-90
Construction
Deck Construction	All Welded	All Welded
Deck Thickness	4mm	5mm
Side Thickness	4mm	5mm
Skid	12mm	12mm
Blades
Blade Beam	Laminated Spring Steel Beam	Laminated Spring Steel Beam
Blades Standard	BL6002 (LH Rotation)	BL6002 (LH Rotation)
Blade Bolts	3/4 shank Grade 8 Z/P	3/4 shank Grade 8 Z/P
Driveline
Drive Shaft	Series 6	Series 6
Drive Line Protection	2 Plate friction Clutch	2 Plate friction Clutch
Guarding
Front Guard	10mm z/p chain curtain	10mm z/p chain curtain
Rear Guard	10mm z/p chain curtain	10mm z/p chain curtain
Gearbox	Ezy acces Flip Up	Ezy acces Flip Up

Feature	Ag Series	Pro Series
Features
Machine Weight	509kg	570kg
Hitch	Cat 1 & 2	Cat 1 & 2
Cutting Width	1760mm	1760mm
Overall Width	1900mm	1900mm
Overall Depth	2110mm	2110mm
Deck Height	260mm	260mm
Transport Height	980mm	980mm
Recommended Tractor hp	45-80hp	45-90hp
Speed (RPM)	540	540
Gearbox
Gearbox	75hp	90hp
Input Shaft	1 3/8 z6	1 3/4 z20
Gearbox Lubricant	SAE 80W-90	SAE 80W-90
Construction
Deck Construction	All Welded	All Welded
Deck Thickness	4mm	5mm
Side Thickness	4mm	5mm
Skid	12mm	12mm
Blades
Blade Beam	Laminated Spring Steel Beam	Laminated Spring Steel Beam
Blades Standard	BL6002 (LH Rotation)	BL6002 (LH Rotation)
Blade Bolts	3/4 shank Grade 8 Z/P	3/4 shank Grade 8 Z/P
Driveline
Drive Shaft	Series 6	Series 6
Drive Line Protection	2 Plate friction Clutch	2 Plate friction Clutch
Guarding
Front Guard	10mm z/p chain curtain	10mm z/p chain curtain
Rear Guard	10mm z/p chain curtain	10mm z/p chain curtain
Gearbox	Ezy acces Flip Up	Ezy acces Flip Up

Feature	Ag Series	Pro Series
Features
Machine Weight	630kg	630kg
Hitch	Cat 1 & 2	Cat 1 & 2
Cutting Width	2050mm	2050mm
Overall Width	2200mm	2200mm
Overall Depth	2400mm	2400mm
Deck Height	310mm	310mm
Transport Height	1030mm	1030mm
Recommended Tractor hp	60-100hp	60-100hp
Speed (RPM)
Gearbox
Gearbox	60-100hp	90hp
Input Shaft	1 3/4 z20	1 3/4 z20
Gearbox Lubricant	SAE 80W-91	SAE 80W-92
Construction
Deck Construction	All Welded	All Welded
Deck Thickness	5	5mm
Side Thickness	5mm	5mm
Skid	12mm	12mm
Blades
Blade Beam	Laminated Spring Steel Beam	Laminated Spring Steel Beam
Blades Standard	BL6002 (LH Rotation)	BL6002 (LH Rotation)
Blade Bolts	3/4 shank Grade 8 Z/P	3/4 shank Grade 8 Z/P
Driveline
Drive Shaft	Series 8	Series 8
Drive Line Protection	4 Plate friction Clutch	4 Plate friction Clutch
Guarding
Front Guard	10mm z/p chain curtain	10mm z/p chain curtain
Rear Guard	10mm z/p chain curtain	10mm z/p chain curtain
Gearbox	Ezy acces Flip Up	Ezy acces Flip Up
