Triple Rotor Flex-Wing

Contact us

Engineered for Wide-Area Cutting with Precision and Flexibility

Flexwing slashers are available in 3 standard widths and are designed for cutting wide areas, fire breaks, airfields, road verges and just about anything else.

They have the versatility of folding up to transport width, measuring 2.4m, which allows for easy transportation between different locations.

Couple that together with a mechanical level lift system with fine adjustable hydraulic cylinder mounted on spring suspension, 150mm blade overlap with updraft blades and you have one of the most versatile and heavy duty Australian made rotary cutters on the market.

Versatile Hitch Compatibility

Dual Category pick up pins Cat 1 & 2 with slotted link for contour following.

Enhanced Safety & Durability

Zinc plated 10mm front and rear safety chain curtains with wire rope replacement system.

Built to Industry Standards

All Piranha Slashers comply with the Australian Industry Standards February 2011.

Peace of Mind Warranty

Exclusive 2-year Warranty (Ag Series) or 3-year Warranty (Pro Series) on all Piranha Slashers.

Features

Standard models are the Flexwing 4500, 5000 and the 5500.
Hydraulic wings fold up to 90 degrees for transport which are protected by an integral anti drop valve for ultimate safety.
All models fold up under 2400mm for road transport and for getting through gates.
Independent floating 3 piece deck floats up 30 degrees and down 15 degrees for undulating ground and a uniform cut.
Ag Series Slashers come with a standard 150hp gearbox set.
Pro Series Slashers come with a 250hp Comer gearbox set.
All gearbox shafts are 1 ¾ 20 spline for exceptional torque transmission.
All rotor gearboxes are individually clutched and overlapped but not timed.
Each rotor gearbox is protected by a 4 plate friction slip clutch and a hinged flip-up cover makes for easy PTO attaching and serviceability.
Spring shock absorber on wheel cylinder provides smooth operation while reducing shock loads to the main frame.
Includes heavy duty adjustable turnbuckles for the wings and mechanical push rods encapsulated in the main deck ensuring a consistent cutting height.
Full length stainless steel hinge pins provide greater strength and durability.
The main bodies are three piece construction folded and fully reinforced HA 350 grade 5mm Australian made plate and tube.
Come standard with 10mm front and rear zinc plated chain curtain with wire rope replacement system.
Laminated spring steel blade beam with hardened dip down twisted mulching blades on a hardened swing back bush.

Explore our videos

Versatility Meets Heavy-Duty Performance

Model Specifications

4500

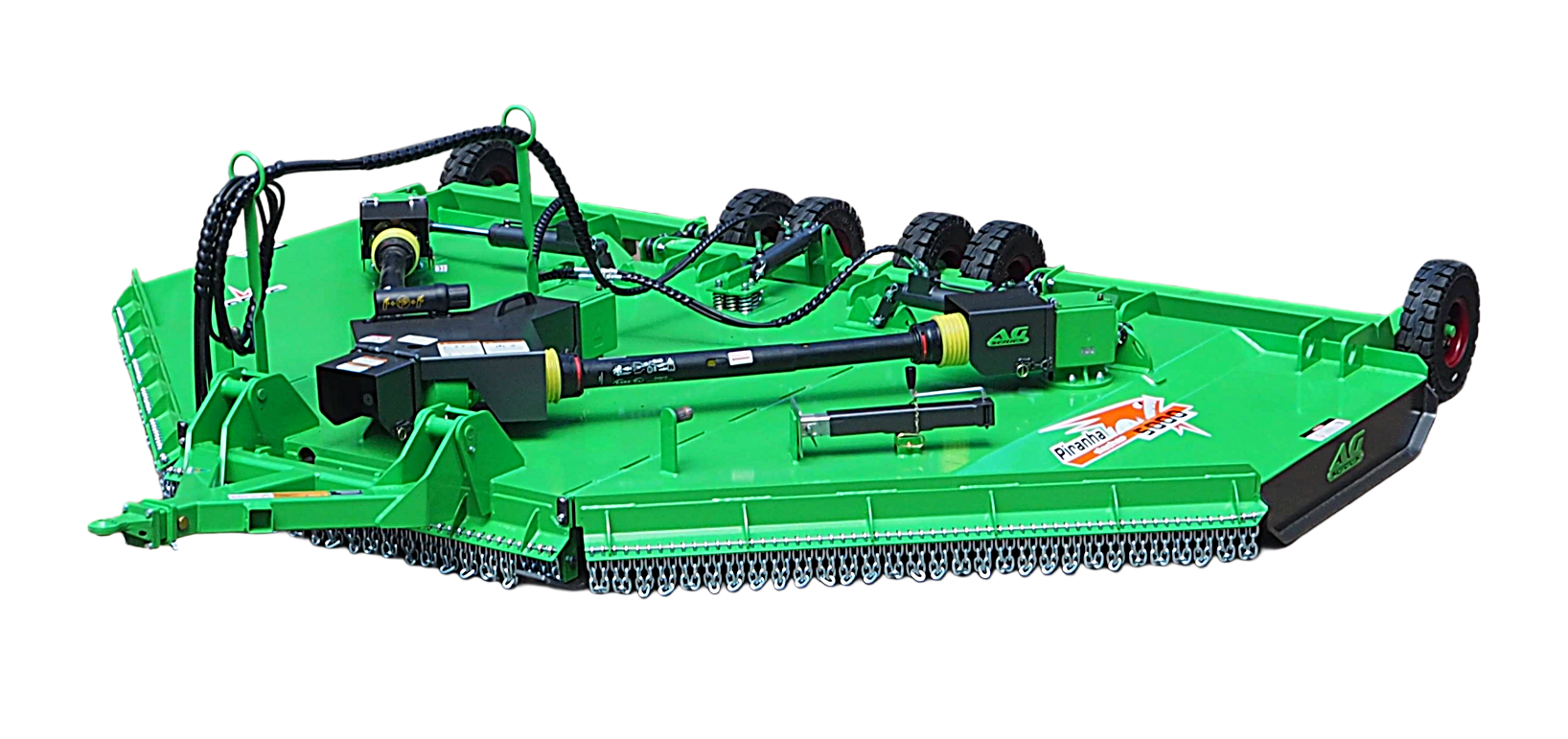

5000

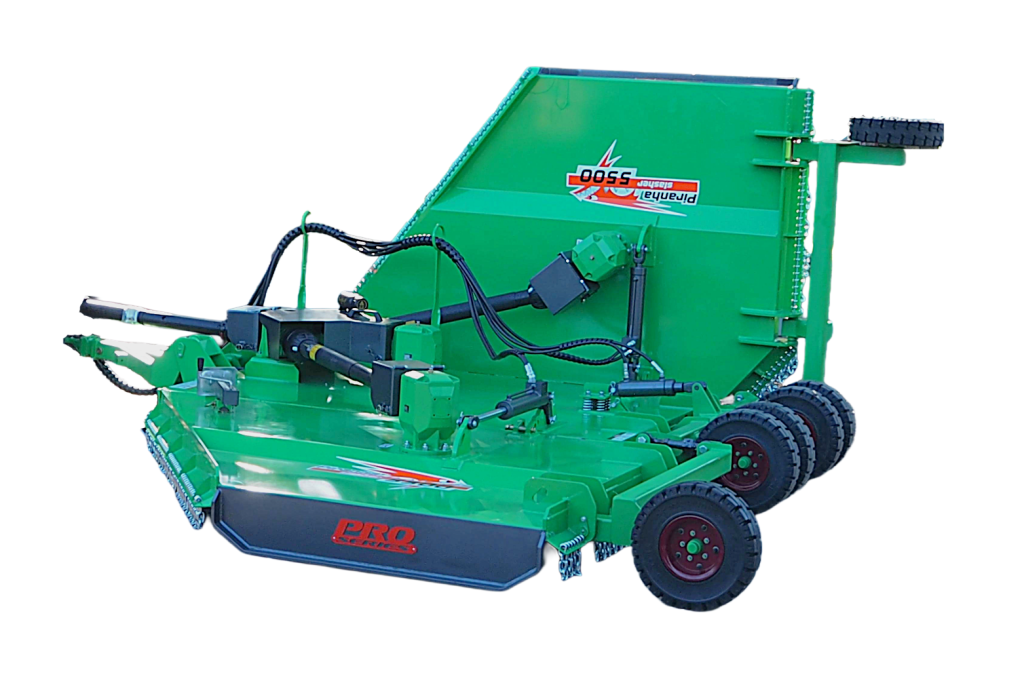

5500

Feature	Ag Series	Pro Series
Features
Machine Weight	1650kg	1750kg
Hitch	Cat 1 & 2	Cat 1 & 2
Cutting Width	4350mm	4350mm
Overall Width	4500mm	4500mm
Overall Depth	3400mm	3400mm
Transport Height	2000mm	2000mm
PTO Speed (RPM)	540	540
Gearbox
Gearbox	150hp	150hp
Input Shaft	1 3/8 z6	1 3/8 z6
Gearbox Lubricant	SAE 80W-90	SAE 80W-90
Construction
Deck Construction	All Welded	All Welded
Deck Thickness	5mm	5mm
Side Thickness	5mm	5mm
Skid	12mm	12mm
Blades
Blade Beam	Laminated Spring Steel Beam	Laminated Spring Steel Beam
Blades Standard	BL6002 (LH Rotation) & BR6002 (RH Rotation)	BL6002 (LH Rotation) & BR6002 (RH Rotation)
Blade Bolts	3/4 Shank Grade 8 Z/P	3/4 Shank Grade 8 Z/P
Driveline
Drive Line Protection	4 Plate Friction Clutch	4 Plate Friction Clutch
Guarding
Front Guard	10mm z/p chain curtain	10mm z/p chain curtain
Rear Guard	10mm z/p chain curtain	10mm z/p chain curtain
Gearbox	Ezy acces Flip Up	Ezy acces Flip Up

Feature	Ag Series	Pro Series
Features
Machine Weight	1820kg	1920kg
Hitch	Cat 1 & 2	Cat 1 & 2
Cutting Width	4850mm	4850mm
Overall Width	5000mm	5000mm
Overall Depth	3500mm	3500mm
Transport Height	2075mm	2075mm
PTO Speed (RPM)	540	540
Gearbox
Gearbox	150hp	150hp
Input Shaft	1 3/8 z6	1 3/8 z6
Gearbox Lubricant	SAE 80W-90	SAE 80W-90
Construction
Deck Construction	All Welded	All Welded
Deck Thickness	5mm	5mm
Side Thickness	5mm	5mm
Skid	12mm	12mm
Blades
Blade Beam	Laminated Spring Steel Beam	Laminated Spring Steel Beam
Blades Standard	BL6002 (LH Rotation) & BR6002 (RH Rotation)	BL6002 (LH Rotation) & BR6002 (RH Rotation)
Blade Bolts	3/4 Shank Grade 8 Z/P	3/4 Shank Grade 8 Z/P
Driveline
Drive Line Protection	4 Plate Friction Clutch	4 Plate Friction Clutch
Guarding
Front Guard	10mm z/p chain curtain	10mm z/p chain curtain
Rear Guard	10mm z/p chain curtain	10mm z/p chain curtain
Gearbox	Ezy acces Flip Up	Ezy acces Flip Up

Feature	Ag Series	Pro Series
Features
Machine Weight	2390kg	2490kg
Hitch	Cat 1 & 2	Cat 1 & 2
Cutting Width	5350mm	5350mm
Overall Width	5500mm	5500mm
Overall Depth	3600mm	3600mm
Transport Height	2100mm	2100mm
PTO Speed (RPM)	540	540
Gearbox
Gearbox	150hp	150hp
Input Shaft	1 3/8 z6	1 3/4 z20
Gearbox Lubricant	SAE 80W-90	SAE 80W-90
Construction
Deck Construction	All Welded	All Welded
Deck Thickness	5mm	5mm
Side Thickness	5mm	5mm
Skid	12mm	12mm
Blades
Blade Beam	Laminated Spring Steel Beam	Laminated Spring Steel Beam
Blades Standard	BL6002 (LH Rotation) & BR6002 (RH Rotation)	BL6002 (LH Rotation) & BR6002 (RH Rotation)
Blade Bolts	3/4 Shank Grade 8 Z/P	3/4 Shank Grade 8 Z/P
Driveline
Drive Line Protection	4 Plate Friction Clutch	4 Plate Friction Clutch
Guarding
Front Guard	10mm z/p chain curtain	10mm z/p chain curtain
Rear Guard	10mm z/p chain curtain	10mm z/p chain curtain
Gearbox	Ezy acces Flip Up	Ezy acces Flip Up

Factory Options

Double head stock

Read more
In lieu of standard

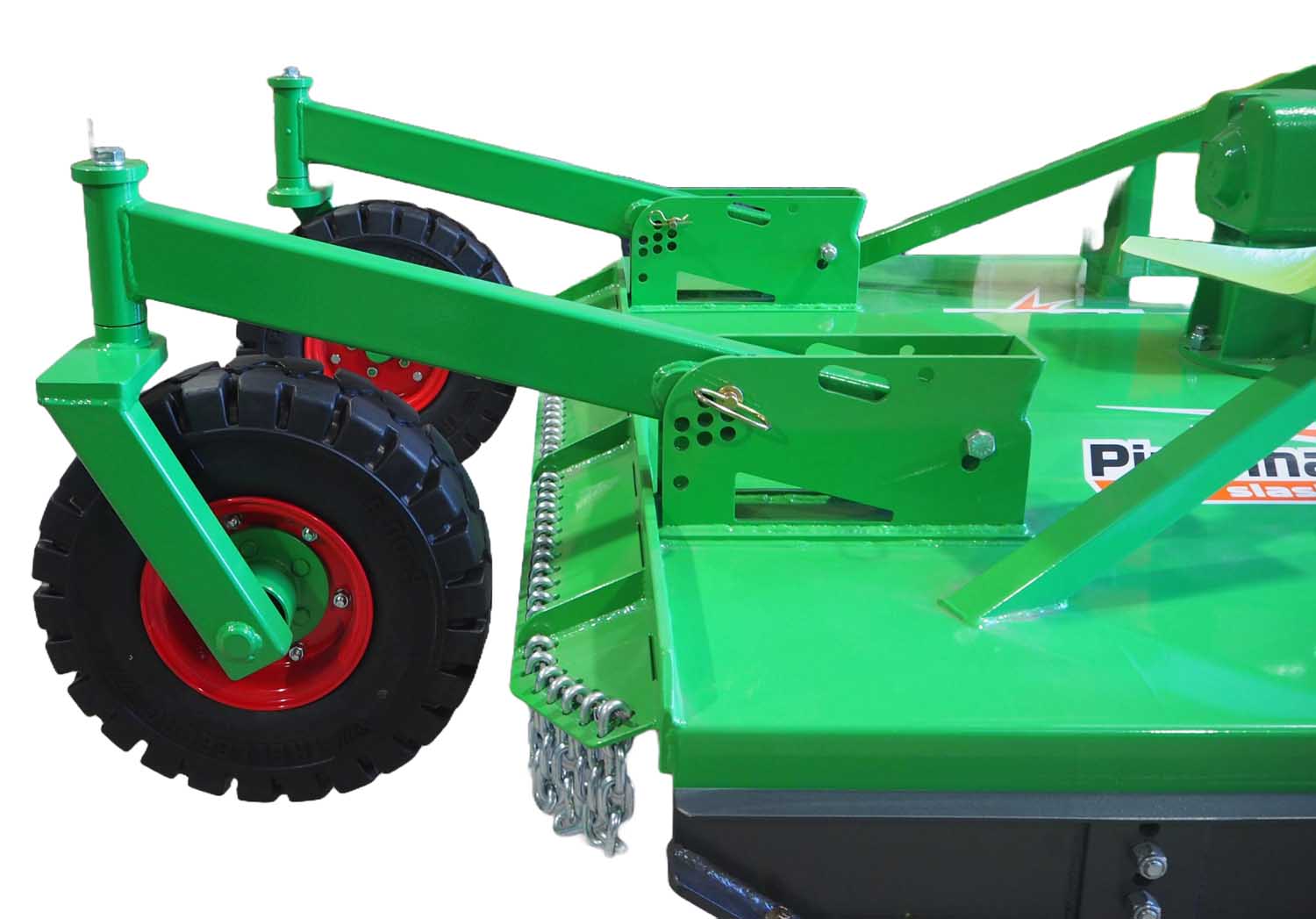

Twin Wheel Kit

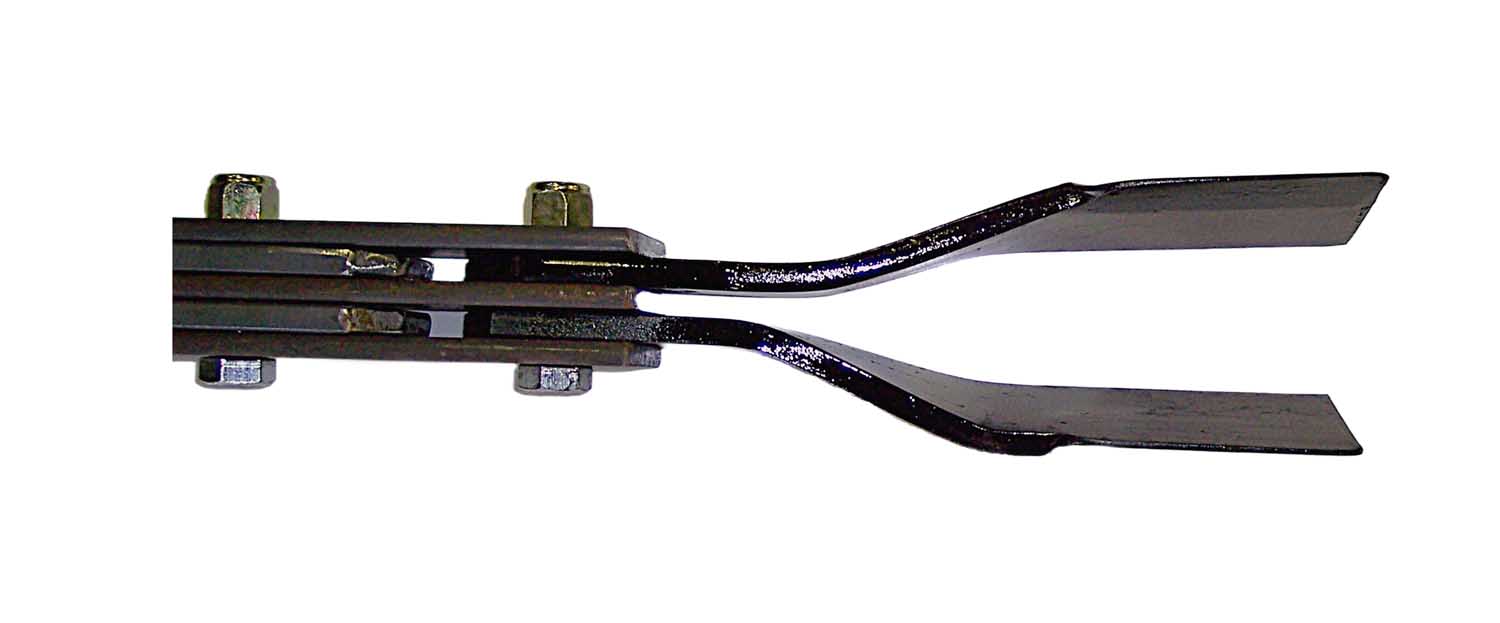

Double head mulching kit

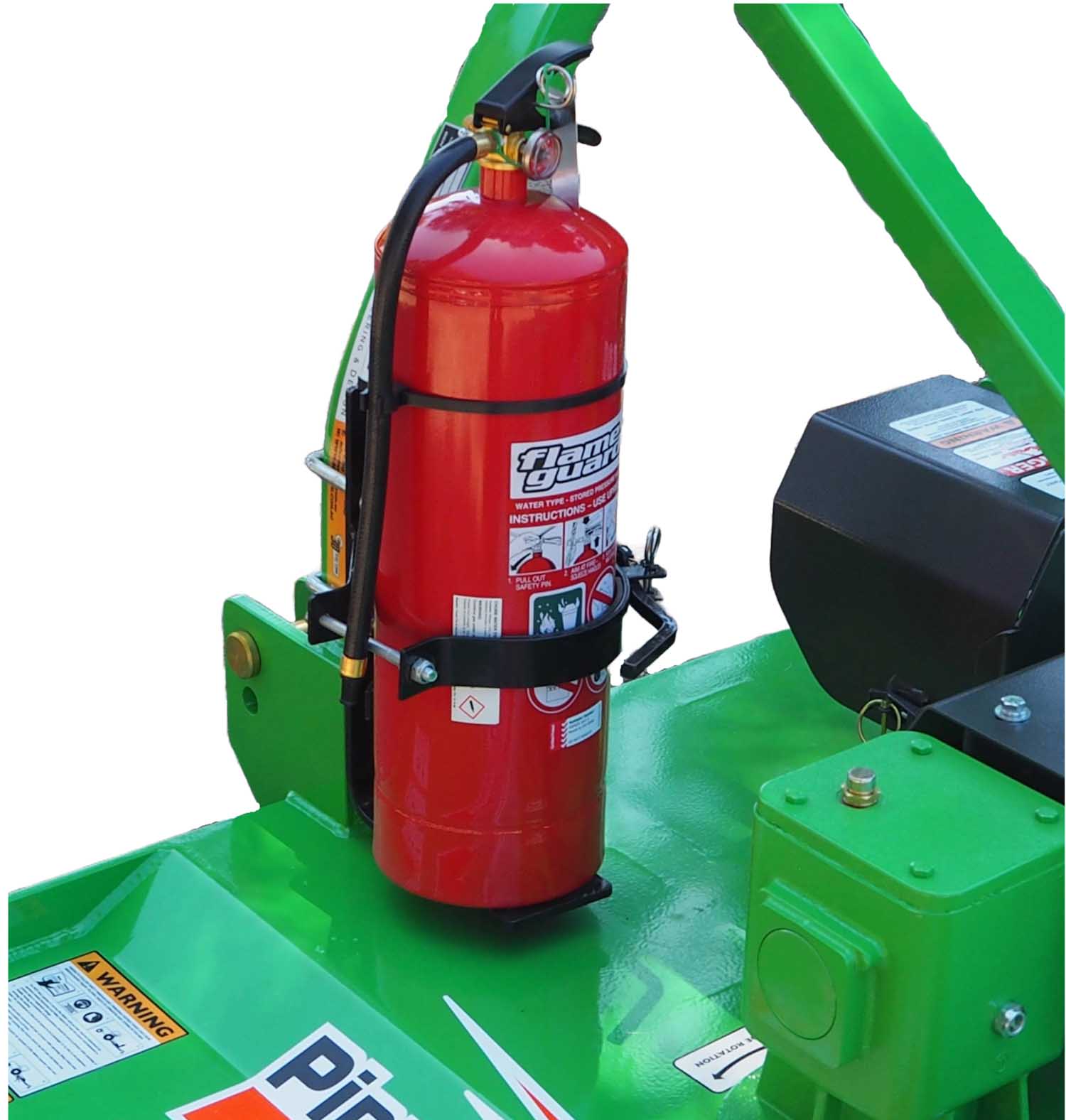

Fire Extinguisher

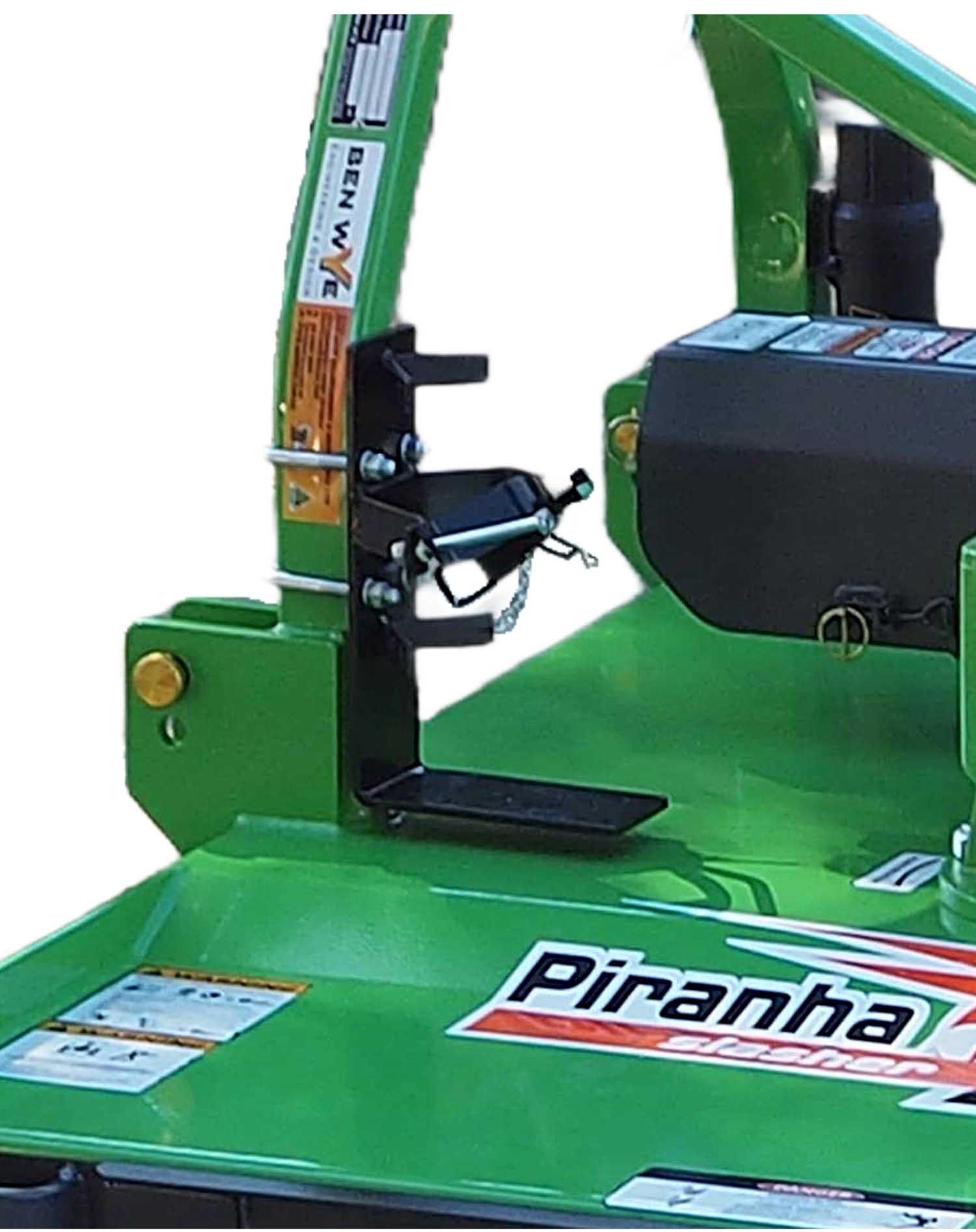

Fire Extinguisher Holder

Agriculture

Pasture

Light Scrub

Heavy Scrub

Airfield

Highway

Waterway
