Triple Rotor Orchard Flex-Wing
Tough on grass, gentle on orchards – built for Aussie conditions.
The AG Series Orchard Flexwing Mower is a specialised, Australian-engineered machine designed to work efficiently with lower horsepower tractors, making it ideal for orchard operations. With its compact wing design and smooth underside, it delivers superior manoeuvrability and clean, even cuts beneath low-hanging branches.
It is particularly suitable for growers who require the versatility of a flexwing cutter but may not have a large enough tractor to pull a 15-foot unit.
Low Horsepower, High Efficiency
Optimised for smaller tractors without compromising on performance.
Compact Flexwing Design
Easily navigates tight orchard rows and under low tree canopies.
Smooth, Low-Profile Deck
Prevents snagging on fruit tree limbs and reduces damage to crops.
Australian-Made Durability
Built tough for the unique conditions of Australian agriculture.
Features
- Three piece folded and fully reinforced HU300 grade 4mm steel for Ag Series or HA350 grade 5mm steel for Pro Series with an easy clean top design.
- Full length stainless steel hinge pins provide ultimate strength and durability.

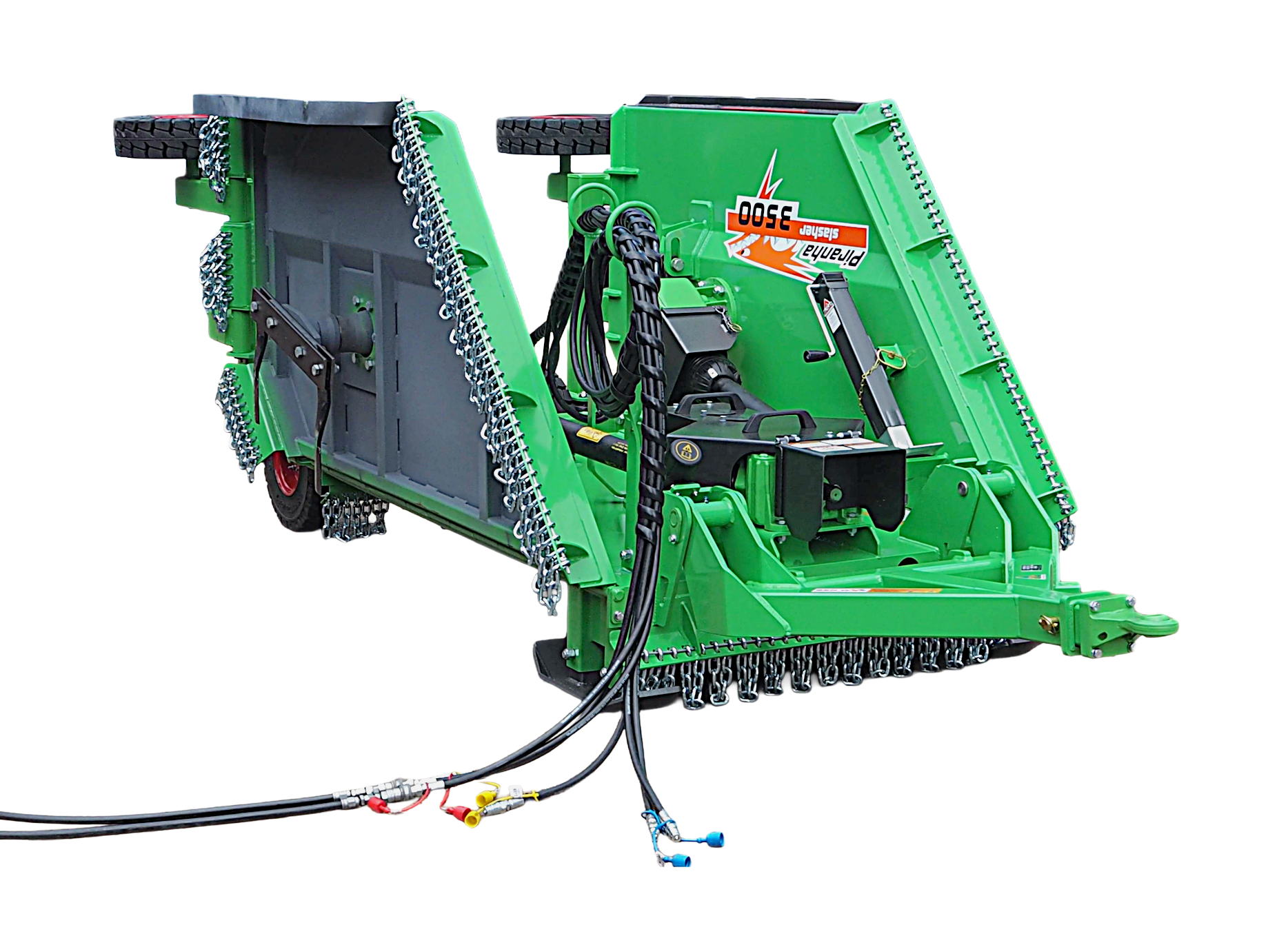

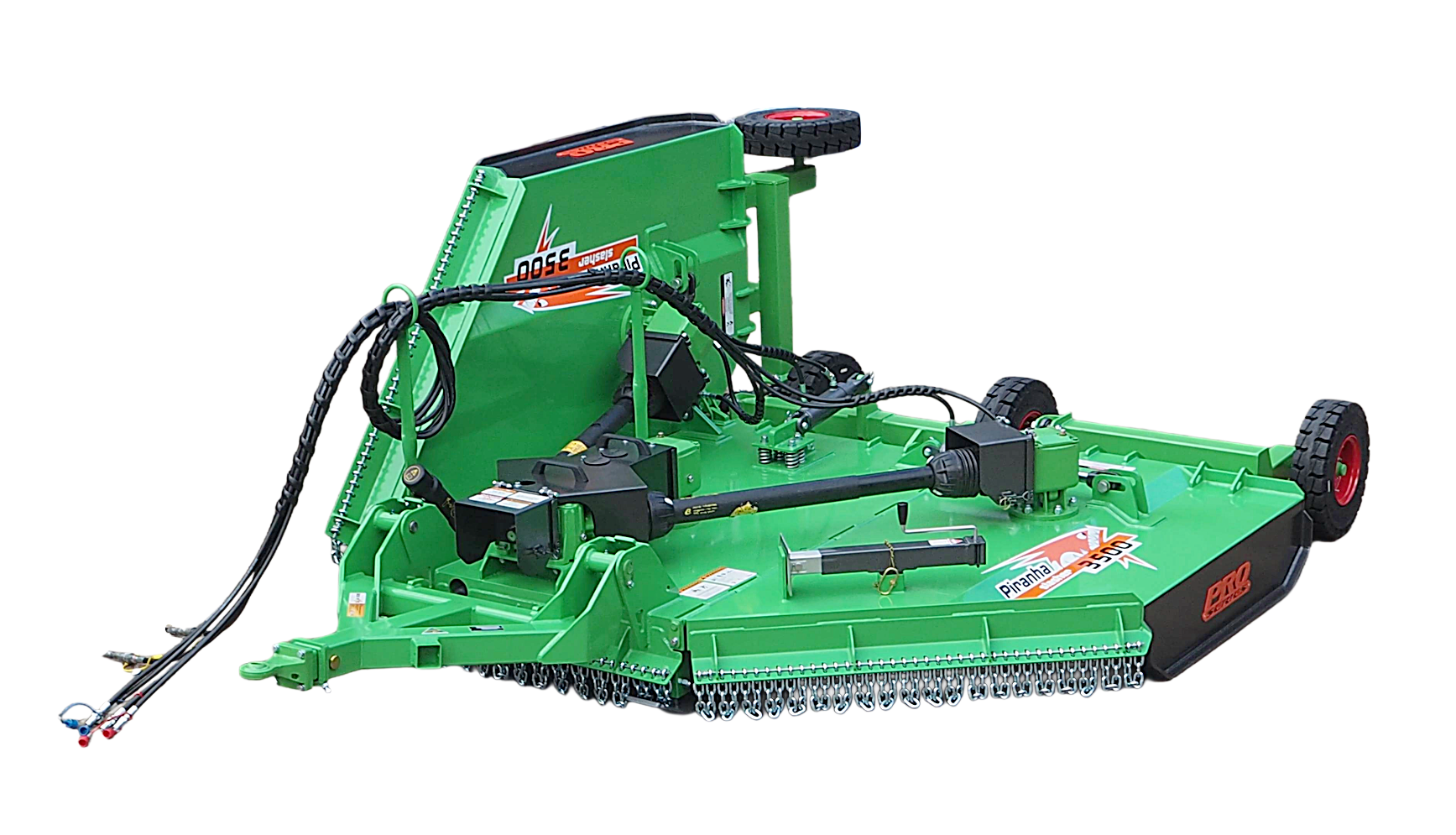

- Wings fold up to 90 degrees for easy transport and can float down to 15 degrees to follow ground contour.
- Ag Series slashers come with 125hp gearbox set.
- Pro Series slashers come with 125hp Comer gearbox set.
- All gearboxes are individually clutched and overlapped but not timed.
- Driveline is protected by a 2 plate friction slip clutch and a hinged flip-up cover makes for easy PTO attaching and serviceability.
- Flexwings come standard with a trailing hydraulic level lift system.
- Includes heavy duty adjustable turnbuckles for the wings and mechanical push rods encapsulated in the main deck, ensuring a consistent cutting height.
- Choice of Fixed Sides (rear delivery) or Side Delivery (both side and rear delivery).
- Zinc plated 10mm Front and rear safety chain curtains with wire rope replacement system.
- Laminated spring steel blade beam with hardened dip down twisted mulching blades on a hardened swing back bush.
Factory Options
Double head stock
- Read more
In lieu of standard
Twin Wheel Kit
- Read more
Double head mulching kit
- Read more
Fire extinguisher
- Read more
Fire extinguisher holder
- Read more
Agriculture
Pasture
Light Scrub
Heavy Scrub
Airfield
Highway
Waterway
