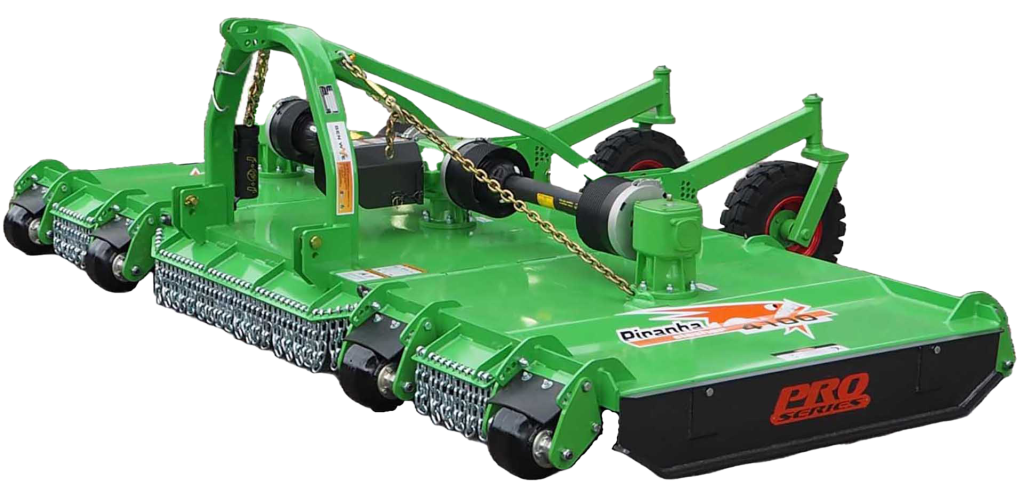

Triple Rotor Winged
Engineered for Strength, Designed for Performance
Piranha Triple Rotor Winged Slashers are built to tackle V and U-shaped terrain with precision, featuring a three-piece winged construction that seamlessly follows ground contours. Designed for 50-150hp PTO tractors, these heavy-duty slashers are available in five models to suit different applications.
Versatile Hitch Compatibility
Enhanced Safety & Durability
Built to Industry Standards
Peace of Mind Warranty
Features
- Three piece folded and fully reinforced HU300 grade 4mm steel for Ag Series or HA350 grade 5mm steel for Pro Series with an easy clean top design.
- Full length stainless steel hinge pins provide ultimate strength and durability.
- Free floating winged deck with two to four 8” front rollers and two 8” rear rollers enables the slasher to adapt to the natural contours of the ground.
- Ag Series Slashers come with a standard 150hp gearbox set.
- Pro Series Slashers come with a 125hp Comer gearbox set.
- The driveline is protected by a 4 plate friction slip clutch and a hinged flip-up cover makes for easy PTO attaching and serviceability.
- Headstock is Centre Mount as standard and is constructed with heavy duty rolled hollow section and reinforced with RHS rear support arms.
- Dual Category pick up pins Cat 1 & 2 with slotted link for contour following.
- Laminated spring steel blade beam with hardened dip down twisted mulching blades on a hardened swing back bush.
- Zinc plated 10mm Front and rear safety chain curtains with wire rope replacement system.

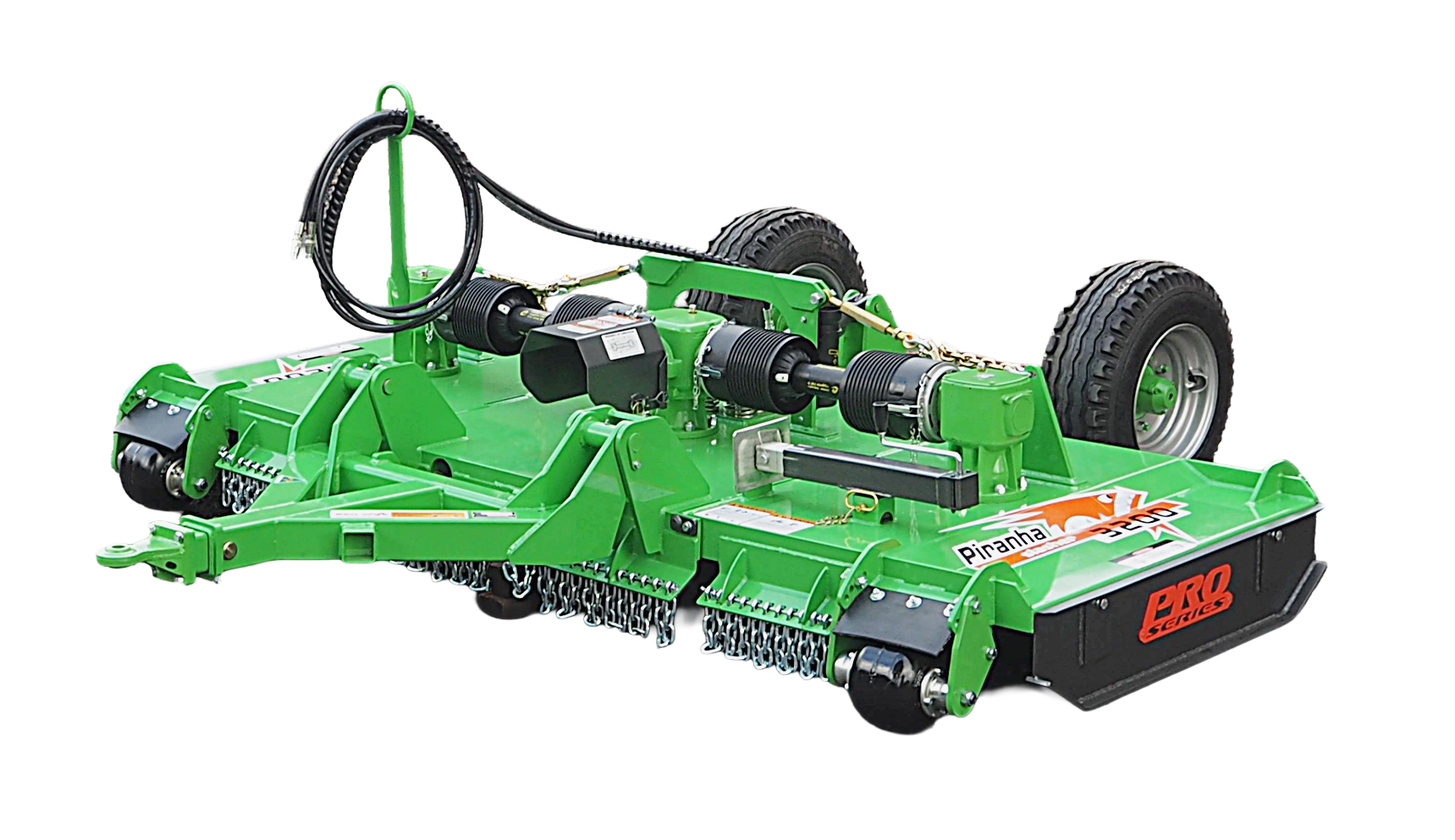

- Option for trailing unit which utilizes a hydraulic level lift system.
- Choice of Fixed Sides (rear delivery) or Side Delivery (both side and rear delivery).
Precision Cutting for Contoured Terrain
Model Specifications
- 3200
- 3500
- 3800
- 4100
- 4400
Feature | Ag Series | Pro Series | ||
|---|---|---|---|---|
| Features | ||||
Machine Weight | 1350kg | 1350kg | ||
Hitch | Cat 1 & 2 | Cat 1 & 2 | ||
Cutting Width | 3050mm | 3050mm | ||
Overall Width | 3200mm | 3200mm | ||
Overall Depth | 1200mm | 1200mm | ||
Recommended Tractor hp | 65hp | 65hp | ||
PTO Speed (RPM) | 540 | 540 | ||
| Gearbox | ||||
Gearbox | 150hp | 150hp | ||
Input Shaft | 1 3/8 z6 | 1 3/8 z6 | ||
Gearbox Lubricant | SAE 80W-90 | SAE 80W-90 | ||
| Construction | ||||
Deck Construction | All Welded | All Welded | ||
Deck Thickness | 4mm | 5mm | ||
Side Thickness | 4mm | 5mm | ||
Skid | 12mm | 12mm | ||
| Blades | ||||
Blade Beam | Laminated Spring Steel Beam | Laminated Spring Steel Beam | ||
Blades Standard | BL6002 (LH Rotation) & BR6002 (RH Rotation) | BL6002 (LH Rotation) & BR6002 (RH Rotation) | ||
Blade Bolts | 3/4 Shank Grade 8 Z/P | 3/4 Shank Grade 8 Z/P | ||
| Driveline | ||||
Drive Line Protection | 4 Plate Friction Clutch | 4 Plate Friction Clutch | ||
| Guarding | ||||
Front Guard | 10mm z/p chain curtain | 10mm z/p chain curtain | ||
Rear Guard | 10mm z/p chain curtain | 10mm z/p chain curtain | ||
Gearbox | Ezy acces Flip Up | Ezy acces Flip Up | ||
Feature | Ag Series | Pro Series | ||
|---|---|---|---|---|
| Features | ||||
Machine Weight | 1400kg | 1400kg | ||
Hitch | Cat 1 & 2 | Cat 1 & 2 | ||
Cutting Width | 3350mm | 3350mm | ||
Overall Width | 3500mm | 3500mm | ||
Overall Depth | 1200mm | 1200mm | ||
Recommended Tractor hp | 65hp | 65hp | ||
PTO Speed (RPM) | 540 | 540 | ||
| Gearbox | ||||
Gearbox | 150hp | 150hp | ||
Input Shaft | 1 3/8 z6 | 1 3/8 z6 | ||
Gearbox Lubricant | SAE 80W-90 | SAE 80W-90 | ||
| Construction | ||||
Deck Construction | All Welded | All Welded | ||
Deck Thickness | 4mm | 5mm | ||
Side Thickness | 4mm | 5mm | ||
Skid | 12mm | 12mm | ||
| Blades | ||||
Blade Beam | Laminated Spring Steel Beam | Laminated Spring Steel Beam | ||
Blades Standard | BL6002 (LH Rotation) & BR6002 (RH Rotation) | BL6002 (LH Rotation) & BR6002 (RH Rotation) | ||
Blade Bolts | 3/4 Shank Grade 8 Z/P | 3/4 Shank Grade 8 Z/P | ||
| Driveline | ||||
Drive Line Protection | 4 Plate Friction Clutch | 4 Plate Friction Clutch | ||
| Guarding | ||||
Front Guard | 10mm z/p chain curtain | 10mm z/p chain curtain | ||
Rear Guard | 10mm z/p chain curtain | 10mm z/p chain curtain | ||
Gearbox | Ezy acces Flip Up | Ezy acces Flip Up | ||
Feature | Ag Series | Pro Series | ||
|---|---|---|---|---|
| Features | ||||
Machine Weight | 1460kg | 1460kg | ||
Hitch | Cat 1 & 2 | Cat 1 & 2 | ||
Cutting Width | 3650mm | 3650mm | ||
Overall Width | 3800mm | 3800mm | ||
Overall Depth | 1250mm | 1250mm | ||
Recommended Tractor hp | 65hp | 65hp | ||
PTO Speed (RPM) | 540 | 540 | ||
| Gearbox | ||||
Gearbox | 150hp | 150hp | ||
Input Shaft | 1 3/8 z6 | 1 3/4 z20 | ||
Gearbox Lubricant | SAE 80W-90 | SAE 80W-90 | ||
| Construction | ||||
Deck Construction | All Welded | All Welded | ||
Deck Thickness | 4mm | 5mm | ||
Side Thickness | 4mm | 5mm | ||
Skid | 12mm | 12mm | ||
| Blades | ||||
Blade Beam | Laminated Spring Steel Beam | Laminated Spring Steel Beam | ||
Blades Standard | BL6002 (LH Rotation) & BR6002 (RH Rotation) | BL6002 (LH Rotation) & BR6002 (RH Rotation) | ||
Blade Bolts | 3/4 Shank Grade 8 Z/P | 3/4 Shank Grade 8 Z/P | ||
| Driveline | ||||
Drive Line Protection | 4 Plate Friction Clutch | 4 Plate Friction Clutch | ||
| Guarding | ||||
Front Guard | 10mm z/p chain curtain | 10mm z/p chain curtain | ||
Rear Guard | 10mm z/p chain curtain | 10mm z/p chain curtain | ||
Gearbox | Ezy acces Flip Up | Ezy acces Flip Up | ||
Feature | Ag Series | Pro Series | ||
|---|---|---|---|---|
| Features | ||||
Machine Weight | 1500kg | 1500kg | ||
Hitch | Cat 1 & 2 | Cat 1 & 2 | ||
Cutting Width | 3950mm | 3950mm | ||
Overall Width | 4100mm | 4100mm | ||
Overall Depth | 1300mm | 1300mm | ||
Recommended Tractor hp | 65hp | 65hp | ||
PTO Speed (RPM) | 540 | 540 | ||
| Gearbox | ||||
Gearbox | 150hp | 150hp | ||
Input Shaft | 1 3/4 z20 | 1 3/4 z20 | ||
Gearbox Lubricant | SAE 80W-91 | SAE 80W-92 | ||
| Construction | ||||
Deck Construction | All Welded | All Welded | ||
Deck Thickness | 4mm | 5mm | ||
Side Thickness | 4mm | 5mm | ||
Skid | 12mm | 12mm | ||
| Blades | ||||
Blade Beam | Laminated Spring Steel Beam | Laminated Spring Steel Beam | ||
Blades Standard | BL6002 (LH Rotation) & BR6002 (RH Rotation) | BL6002 (LH Rotation) & BR6002 (RH Rotation) | ||
Blade Bolts | 3/4 Shank Grade 8 Z/P | 3/4 Shank Grade 8 Z/P | ||
| Driveline | ||||
Drive Line Protection | 4 Plate Friction Clutch | 4 Plate Friction Clutch | ||
| Guarding | ||||
Front Guard | 10mm z/p chain curtain | 10mm z/p chain curtain | ||
Rear Guard | 10mm z/p chain curtain | 10mm z/p chain curtain | ||
Gearbox | Ezy acces Flip Up | Ezy acces Flip Up | ||
Feature | Ag Series | Pro Series | ||
|---|---|---|---|---|
| Features | ||||
Machine Weight | 1590kg | 1590kg | ||
Hitch | Cat 1 & 2 | Cat 1 & 2 | ||
Cutting Width | 4250mm | 4250mm | ||
Overall Width | 4400mm | 4400mm | ||
Overall Depth | 1500mm | 1500mm | ||
Recommended Tractor hp | 65hp | 65hp | ||
PTO Speed (RPM) | 540 | 540 | ||
| Gearbox | ||||
Gearbox | 150hp | 150hp | ||
Input Shaft | 1 3/4 z20 | 1 3/4 z20 | ||
Gearbox Lubricant | SAE 80W-91 | SAE 80W-92 | ||
| Construction | ||||
Deck Construction | All Welded | All Welded | ||
Deck Thickness | 4mm | 5mm | ||
Side Thickness | 4mm | 5mm | ||
Skid | 12mm | 12mm | ||
| Blades | ||||
Blade Beam | Laminated Spring Steel Beam | Laminated Spring Steel Beam | ||
Blades Standard | BL6002 (LH Rotation) & BR6002 (RH Rotation) | BL6002 (LH Rotation) & BR6002 (RH Rotation) | ||
Blade Bolts | 3/4 Shank Grade 8 Z/P | 3/4 Shank Grade 8 Z/P | ||
| Driveline | ||||
Drive Line Protection | 4 Plate Friction Clutch | 4 Plate Friction Clutch | ||
| Guarding | ||||
Front Guard | 10mm z/p chain curtain | 10mm z/p chain curtain | ||
Rear Guard | 10mm z/p chain curtain | 10mm z/p chain curtain | ||
Gearbox | Ezy acces Flip Up | Ezy acces Flip Up | ||
Factory Options
Double head stock
- Read more
In lieu of standard
Twin Wheel Kit
- Read more
Double head mulching kit
- Read more
Fire Extinguisher
- Read more
Fire Extinguisher Holder
- Read more
