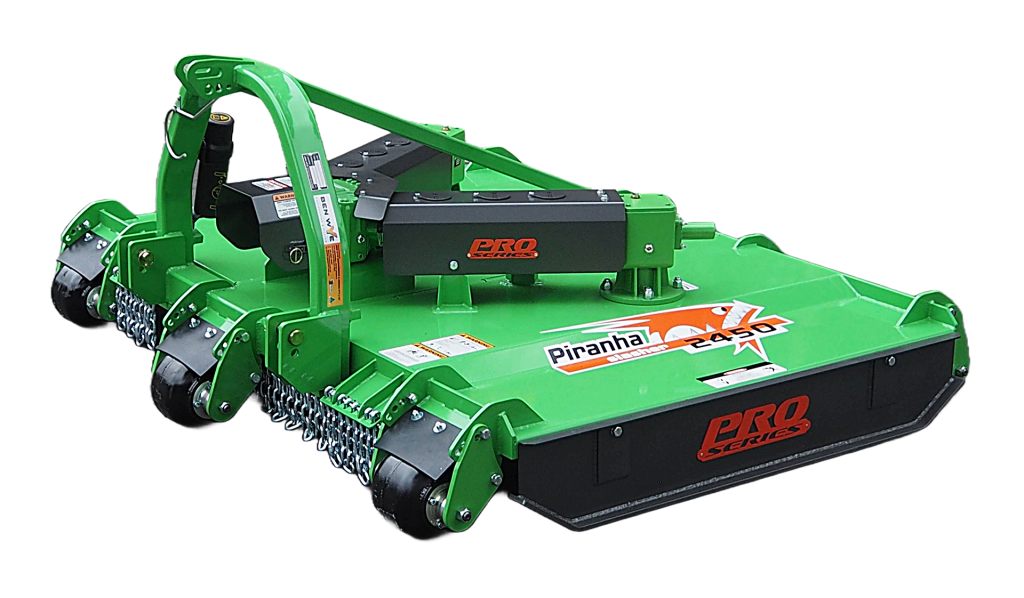

Twin Rotor – Drop Centre

The Piranha Twin Rotor Drop Centre Slashers are engineered for precise cutting in V-shaped inter-row vineyards and orchards, with free-floating wings that follow ground contours effortlessly. Designed for 40-130hp tractors, they are available in nine different sizes to suit various needs.

Versatile Hitch Compatibility

Dual Category pick up pins Cat 1 & 2 with slotted link for contour following.

Enhanced Safety & Durability

Zinc plated 10mm front and rear safety chain curtains with wire rope replacement system.

Built to Industry Standards

All Piranha Slashers comply with the Australian Industry Standards February 2011.

Peace of Mind Warranty

Exclusive 2-year Warranty (Ag Series) or 3-year Warranty (Pro Series) on all Piranha Slashers.

Features

Three piece folded and fully reinforced HU300 grade 4mm steel for Ag Series or HA350 grade 5mm steel for Pro Series with an easy clean top design.
Full length stainless steel hinge pins for ultimate strength and longevity .
Come standard with two 8” rear rollers and three 8” front rollers allowing slasher to adapt to the natural contours of the ground.
Dual Category pick up pins Cat 1 & 2 with slotted link for contour following.
Heavy duty rolled hollow section headstock with RHS rear support arms for ultimate deck strength .
Zinc plated 10mm Front and rear safety chain curtains with wire rope replacement system.
Unique 120/75hp Y-pattern gearbox configuration for a more compact design.
Drive line is protected by an integral 2 or 4 plate friction slip clutch and is covered by a hinged flip-up cover for easy PTO attaching and serviceability.
Available with either Fixed Sides (rear delivery) or Side Delivery (both side and rear delivery).

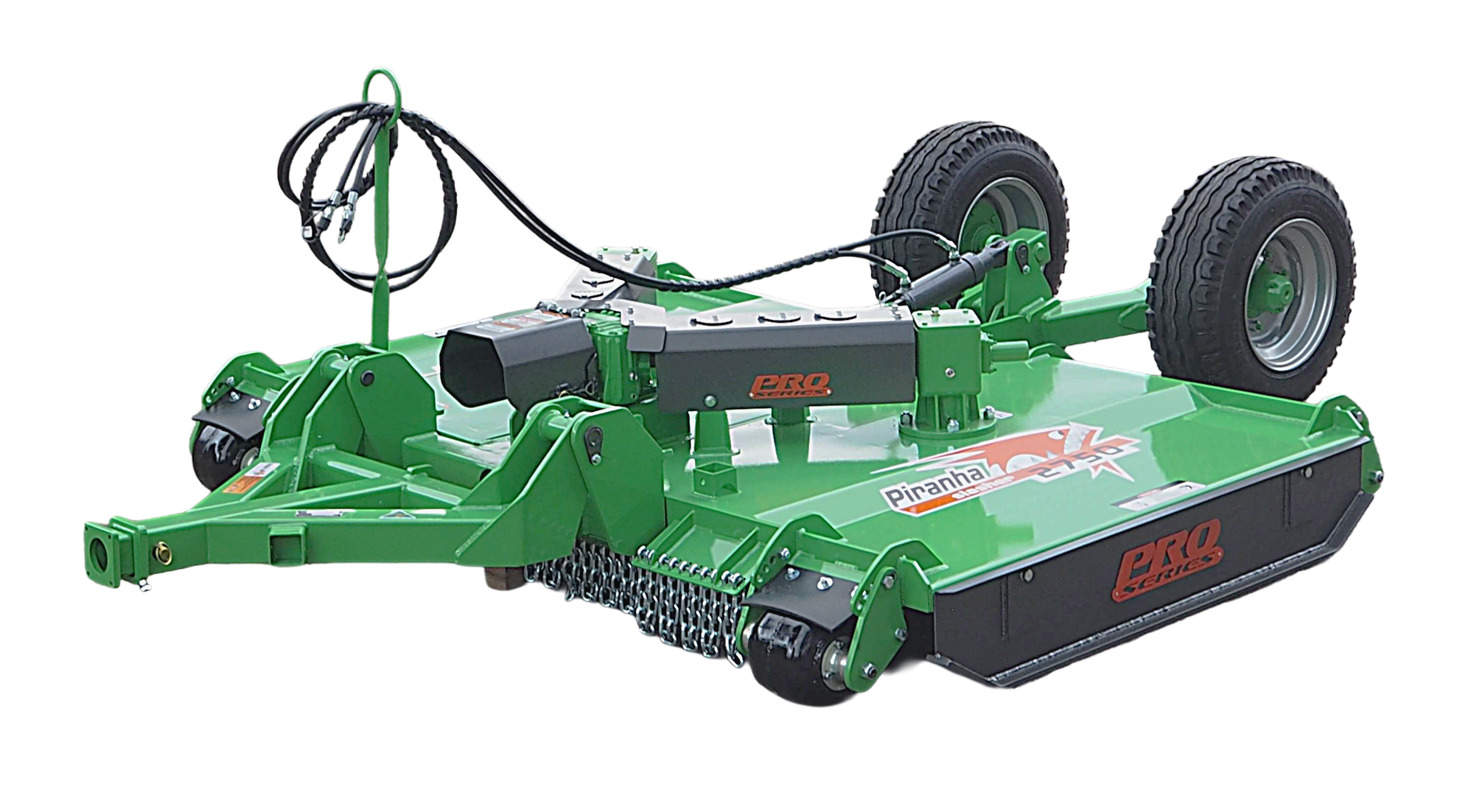

Drop Centre slashers can be manufactured with a trailing option which utilizes a hydraulic level lift system.
Laminated spring steel blade beam with hardened dip down twisted mulching blades on a hardened swing back bush, or the optional dual blade mulching kit.
Half sizes are available on request, e.g. 2450mm wide.

Explore our videos

Precision Cutting for V-Contour Rows

Model Specifications

Feature	Ag Series	Pro Series
Features
Machine Weight	690kg	690kg
Hitch	Cat 1 & 2	Cat 1 & 2
Cutting Width	1670mm	1670mm
Overall Width	1830mm	1830mm
Overall Depth	1200mm	1200mm
Recommended Tractor hp	35hp	35hp
PTO Speed (RPM)	540	540
Gearbox
Gearbox	120/75hp	120/75hp
Input Shaft	1 3/8 z6	1 3/8 z6
Gearbox Lubricant	SAE 80W-90	SAE 80W-90
Construction
Deck Construction	All Welded	All Welded
Deck Thickness	4mm	5mm
Side Thickness	4mm	5mm
Skid	12mm	12mm
Blades
Blade Beam	Laminated Spring Steel Beam	Laminated Spring Steel Beam
Blades Standard	BL6002 (LH Rotation) & BR6002 (RH Rotation)	BL6002 (LH Rotation) & BR6002 (RH Rotation)
Blade Bolts	3/4 Shank Grade 8 Z/P	3/4 Shank Grade 8 Z/P
Driveline
Drive Shaft	Series 6	Series 6
Drive Line Protection	2 Plate Friction Clutch	2 Plate Friction Clutch
Guarding
Front Guard	10mm z/p chain curtain	10mm z/p chain curtain
Rear Guard	10mm z/p chain curtain	10mm z/p chain curtain
Gearbox	Ezy acces Flip Up	Ezy acces Flip Up

Feature	Ag Series	Pro Series
Features
Machine Weight	720kg	720kg
Hitch	Cat 1 & 2	Cat 1 & 2
Cutting Width	1830mm	1830mm
Overall Width	2000mm	2000mm
Overall Depth	1200mm	1200mm
Recommended Tractor hp	35hp	35hp
PTO Speed (RPM)	540	540
Gearbox
Gearbox	120/75hp	120/75hp
Input Shaft	1 3/8 z6	1 3/8 z6
Gearbox Lubricant	SAE 80W-90	SAE 80W-90
Construction
Deck Construction	All Welded	All Welded
Deck Thickness	4mm	5mm
Side Thickness	4mm	5mm
Skid	12mm	12mm
Blades
Blade Beam	Laminated Spring Steel Beam	Laminated Spring Steel Beam
Blades Standard	BL6002 (LH Rotation) & BR6002 (RH Rotation)	BL6002 (LH Rotation) & BR6002 (RH Rotation)
Blade Bolts	3/4 Shank Grade 8 Z/P	3/4 Shank Grade 8 Z/P
Driveline
Drive Shaft	Series 6	Series 6
Drive Line Protection	2 Plate Friction Clutch	2 Plate Friction Clutch
Guarding
Front Guard	10mm z/p chain curtain	10mm z/p chain curtain
Rear Guard	10mm z/p chain curtain	10mm z/p chain curtain
Gearbox	Ezy acces Flip Up	Ezy acces Flip Up

Feature	Ag Series	Pro Series
Features
Machine Weight	750kg	750kg
Hitch	Cat 1 & 2	Cat 1 & 2
Cutting Width	1950mm	1950mm
Overall Width	2100mm	2100mm
Overall Depth	1200mm	1200mm
Recommended Tractor hp	35hp	35hp
PTO Speed (RPM)	540	540
Gearbox
Gearbox	120/75hp	120/75hp
Input Shaft	1 3/8 z6	1 3/4 z20
Gearbox Lubricant	SAE 80W-90	SAE 80W-90
Construction
Deck Construction	All Welded	All Welded
Deck Thickness	4mm	5mm
Side Thickness	4mm	5mm
Skid	12mm	12mm
Blades
Blade Beam	Laminated Spring Steel Beam	Laminated Spring Steel Beam
Blades Standard	BL6002 (LH Rotation) & BR6002 (RH Rotation)	BL6002 (LH Rotation) & BR6002 (RH Rotation)
Blade Bolts	3/4 Shank Grade 8 Z/P	3/4 Shank Grade 8 Z/P
Driveline
Drive Shaft	Series 6	Series 6
Drive Line Protection	2 Plate Friction Clutch	2 Plate Friction Clutch
Guarding
Front Guard	10mm z/p chain curtain	10mm z/p chain curtain
Rear Guard	10mm z/p chain curtain	10mm z/p chain curtain
Gearbox	Ezy acces Flip Up	Ezy acces Flip Up

Feature	Ag Series	Pro Series
Features
Machine Weight	800kg	800kg
Hitch	Cat 1 & 2	Cat 1 & 2
Cutting Width	2140mm	2140mm
Overall Width	2300mm	2300mm
Overall Depth	1250mm	1250mm
Recommended Tractor hp	35hp	35hp
PTO Speed (RPM)	540	540
Gearbox
Gearbox	120/75hp	120/75hp
Input Shaft	1 3/4 z20	1 3/4 z20
Gearbox Lubricant	SAE 80W-91	SAE 80W-92
Construction
Deck Construction	All Welded	All Welded
Deck Thickness	4mm	5mm
Side Thickness	4mm	5mm
Skid	12mm	12mm
Blades
Blade Beam	Laminated Spring Steel Beam	Laminated Spring Steel Beam
Blades Standard	BL6002 (LH Rotation) & BR6002 (RH Rotation)	BL6002 (LH Rotation) & BR6002 (RH Rotation)
Blade Bolts	3/4 Shank Grade 8 Z/P	3/4 Shank Grade 8 Z/P
Driveline
Drive Shaft	Series 6	Series 6
Drive Line Protection	2 Plate Friction Clutch	2 Plate Friction Clutch
Guarding
Front Guard	10mm z/p chain curtain	10mm z/p chain curtain
Rear Guard	10mm z/p chain curtain	10mm z/p chain curtain
Gearbox	Ezy acces Flip Up	Ezy acces Flip Up

Feature	Ag Series	Pro Series
Features
Machine Weight	840kg	840kg
Hitch	Cat 1 & 2	Cat 1 & 2
Cutting Width	2290mm	2290mm
Overall Width	2400mm	2400mm
Overall Depth	1250mm	1250mm
Recommended Tractor hp	35hp	35hp
PTO Speed (RPM)	540	540
Gearbox
Gearbox	120/75hp	120/75hp
Input Shaft	1 3/4 z20	1 3/4 z20
Gearbox Lubricant	SAE 80W-91	SAE 80W-92
Construction
Deck Construction	All Welded	All Welded
Deck Thickness	4mm	5mm
Side Thickness	4mm	5mm
Skid	12mm	12mm
Blades
Blade Beam	Laminated Spring Steel Beam	Laminated Spring Steel Beam
Blades Standard	BL6002 (LH Rotation) & BR6002 (RH Rotation)	BL6002 (LH Rotation) & BR6002 (RH Rotation)
Blade Bolts	3/4 Shank Grade 8 Z/P	3/4 Shank Grade 8 Z/P
Driveline
Drive Shaft	Series 6	Series 6
Drive Line Protection	2 Plate Friction Clutch	2 Plate Friction Clutch
Guarding
Front Guard	10mm z/p chain curtain	10mm z/p chain curtain
Rear Guard	10mm z/p chain curtain	10mm z/p chain curtain
Gearbox	Ezy acces Flip Up	Ezy acces Flip Up

Feature	Ag Series	Pro Series
Features
Machine Weight	840kg	840kg
Hitch	Cat 1 & 2	Cat 1 & 2
Cutting Width	2440mm	2440mm
Overall Width	2600mm	2600mm
Overall Depth	1250mm	1250mm
Recommended Tractor hp	40hp	40hp
PTO Speed (RPM)	540	540
Gearbox
Gearbox	120/75hp	120/75hp
Input Shaft	1 3/4 z20	1 3/4 z20
Gearbox Lubricant	SAE 80W-91	SAE 80W-92
Construction
Deck Construction	All Welded	All Welded
Deck Thickness	4mm	5mm
Side Thickness	4mm	5mm
Skid	12mm	12mm
Blades
Blade Beam	Laminated Spring Steel Beam	Laminated Spring Steel Beam
Blades Standard	BL6002 (LH Rotation) & BR6002 (RH Rotation)	BL6002 (LH Rotation) & BR6002 (RH Rotation)
Blade Bolts	3/4 Shank Grade 8 Z/P	3/4 Shank Grade 8 Z/P
Driveline
Drive Shaft	Series 6	Series 6
Drive Line Protection	2 Plate Friction Clutch	2 Plate Friction Clutch
Guarding
Front Guard	10mm z/p chain curtain	10mm z/p chain curtain
Rear Guard	10mm z/p chain curtain	10mm z/p chain curtain
Gearbox	Ezy acces Flip Up	Ezy acces Flip Up

Feature	Ag Series	Pro Series
Features
Machine Weight	950kg	950kg
Hitch	Cat 1 & 2	Cat 1 & 2
Cutting Width	2590mm	2590mm
Overall Width	2750mm	2750mm
Overall Depth	1350mm	1350mm
Recommended Tractor hp	40hp	40hp
PTO Speed (RPM)	540	540
Gearbox
Gearbox	120/75hp	120/75hp
Input Shaft	1 3/4 z20	1 3/4 z20
Gearbox Lubricant	SAE 80W-91	SAE 80W-92
Construction
Deck Construction	All Welded	All Welded
Deck Thickness	4mm	5mm
Side Thickness	4mm	5mm
Skid	12mm	12mm
Blades
Blade Beam	Laminated Spring Steel Beam	Laminated Spring Steel Beam
Blades Standard	BL6002 (LH Rotation) & BR6002 (RH Rotation)	BL6002 (LH Rotation) & BR6002 (RH Rotation)
Blade Bolts	3/4 Shank Grade 8 Z/P	3/4 Shank Grade 8 Z/P
Driveline
Drive Shaft	Series 6	Series 6
Drive Line Protection	2 Plate Friction Clutch	2 Plate Friction Clutch
Guarding
Front Guard	10mm z/p chain curtain	10mm z/p chain curtain
Rear Guard	10mm z/p chain curtain	10mm z/p chain curtain
Gearbox	Ezy acces Flip Up	Ezy acces Flip Up

Feature	Ag Series	Pro Series
Features
Machine Weight	910kg	910kg
Hitch	Cat 1 & 2	Cat 1 & 2
Cutting Width	2750mm	2750mm
Overall Width	2900mm	2900mm
Overall Depth	1400mm	1400mm
Recommended Tractor hp	60hp	60hp
PTO Speed (RPM)	540	540
Gearbox
Gearbox	120/75hp	120/75hp
Input Shaft	1 3/4 z20	1 3/4 z20
Gearbox Lubricant	SAE 80W-91	SAE 80W-92
Construction
Deck Construction	All Welded	All Welded
Deck Thickness	4mm	5mm
Side Thickness	4mm	5mm
Skid	12mm	12mm
Blades
Blade Beam	Laminated Spring Steel Beam	Laminated Spring Steel Beam
Blades Standard	BL6002 (LH Rotation) & BR6002 (RH Rotation)	BL6002 (LH Rotation) & BR6002 (RH Rotation)
Blade Bolts	3/4 Shank Grade 8 Z/P	3/4 Shank Grade 8 Z/P
Driveline
Drive Shaft	Series 6	Series 6
Drive Line Protection	2 Plate Friction Clutch	2 Plate Friction Clutch
Guarding
Front Guard	10mm z/p chain curtain	10mm z/p chain curtain
Rear Guard	10mm z/p chain curtain	10mm z/p chain curtain
Gearbox	Ezy acces Flip Up	Ezy acces Flip Up

Feature	Ag Series	Pro Series
Features
Machine Weight	1060kg	1060kg
Hitch	Cat 1 & 2	Cat 1 & 2
Cutting Width	3050mm	3050mm
Overall Width	3200mm	3200mm
Overall Depth	1500mm	1500mm
Recommended Tractor hp	70hp	70hp
PTO Speed (RPM)	540	540
Gearbox
Gearbox	120/75hp	120/75hp
Input Shaft	1 3/4 z20	1 3/4 z20
Gearbox Lubricant	SAE 80W-91	SAE 80W-92
Construction
Deck Construction	All Welded	All Welded
Deck Thickness	4mm	5mm
Side Thickness	4mm	5mm
Skid	12mm	12mm
Blades
Blade Beam	Laminated Spring Steel Beam	Laminated Spring Steel Beam
Blades Standard	BL6002 (LH Rotation) & BR6002 (RH Rotation)	BL6002 (LH Rotation) & BR6002 (RH Rotation)
Blade Bolts	3/4 Shank Grade 8 Z/P	3/4 Shank Grade 8 Z/P
Drive Shaft	Series 6	Series 6
Driveline
Drive Line Protection	2 Plate Friction Clutch	2 Plate Friction Clutch
Guarding
Front Guard	10mm z/p chain curtain	10mm z/p chain curtain
Rear Guard	10mm z/p chain curtain	10mm z/p chain curtain
Gearbox	Ezy acces Flip Up	Ezy acces Flip Up

Factory Options

Single wheel kit 690/600 x9 6ply

Read more
Per Assembly

Solid forklift tyres (in lieu of pneumatic)

Spray Unit

Double Blade Mulching Kit

Fire Extinguisher

Fire Extinguisher Holder
