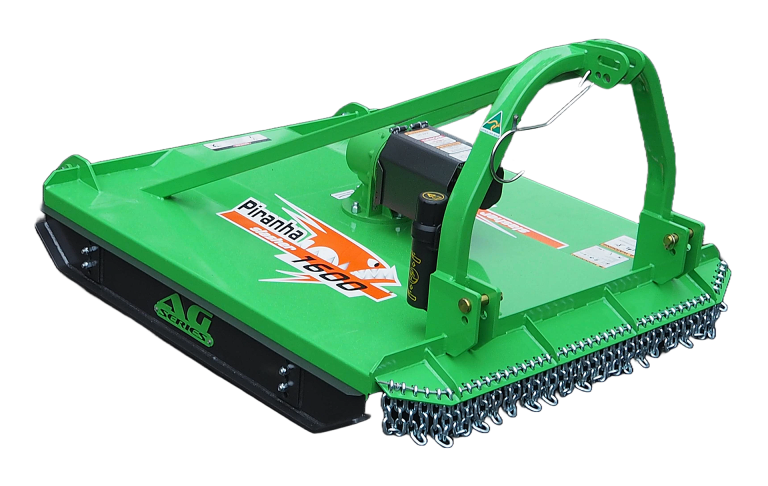

Dual Category pick up pins Cat 1 & 2 with slotted link for contour following.
Zinc plated 10mm front and rear safety chain curtains with wire rope replacement system.
All Piranha Slashers comply with the Australian Industry Standards February 2011.
Exclusive 2 year Warranty on all Piranha Slashers.
- One piece folded and fully reinforced HU300 grade 4mm or 350 grade 5mm main deck with a easy clean top design.
- Dual Category pick up pins Cat 1 & 2 with slotted link for contour following.
- Heavy duty rolled hollow section headstock with RHS rear support arms for ultimate deck strength which is available in either Centre Mount , Offset or double headstock.
- Zinc plated 10mm Front and rear safety chain curtains with wire rope replacement system.
- Choice of 50hp, 75hp or 100hp gearboxes.
- Drive Shaft is a telescopic trilobal profile in either a 6 or 8 series shaft with an easy maintenance lever lock cover.
- Drive line is protected by either a 2 or 4 plate friction slip clutch , and is covered by a hinged flip up cover for easy PTO attaching and serviceability.
- Laminated spring steel blade beam with hardened dip down twisted mulching blades on a hardened swing back bush, or the optional dual blade mulching kit.
- Half sizes are available on request, e.g. 1750mm wide.
- One piece folded and fully reinforced HU300 grade 4mm or 350 grade 5mm main deck with a easy clean top design.
- Dual Category pick up pins Cat 1 & 2 with slotted link for contour following.
- Zinc plated 10mm Front and rear safety chain curtains with wire rope replacement system.
- Available in either centre mount, offset or double headstock (some models only).
- Drive Shaft is a telescopic trilobal profile in either a 6 or 8 series shaft with an easy maintenance lever lock cover.
- Fixed sides or Twin Side Delivery.
- Choice of 80/75hp Gearbox set or 150/130hp gearbox set.
- Gearbox’s have precision cut case hardened gears with high quality tapered roller bearings used throughout. Centre transfer gearbox greatly reduces the angle of the input PTO shaft for greater longevity.
- Laminated spring steel blade beam with hardened dip down twisted mulching blades on a hardened swing back bush.
- Three piece folded and fully reinforced HU300 grade 4mm or 350 grade 5mm main deck with a easy clean top design.
- Full length stainless steel hinge pins for ultimate strength and longevity .

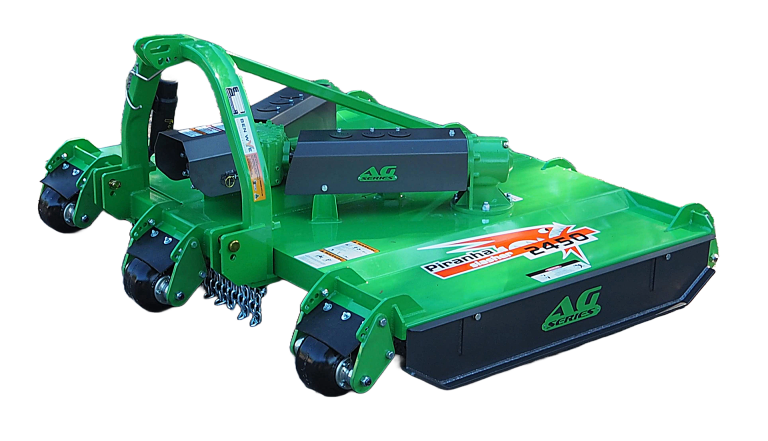

- Come standard with 2 rear and 3 front rollers to follow ground contours of V-Shaped vineyards or orchards.
- Dual Category pick up pins Cat 1 & 2 with slotted link for contour following.
- Heavy duty rolled hollow section headstock with RHS rear support arms for ultimate deck strength .
- Zinc plated 10mm Front and rear safety chain curtains with wire rope replacement system.
- Unique Y-Patten gearbox configuration for a more compact design.
- Drive line is protected by either a friction slip clutch , and is covered by a hinged flip up cover for easy PTO attaching and serviceability.
- Laminated spring steel blade beam with hardened dip down twisted mulching blades on a hardened swing back bush, or the optional dual blade mulching kit.
- Half sizes are available on request, e.g. 1750mm wide.

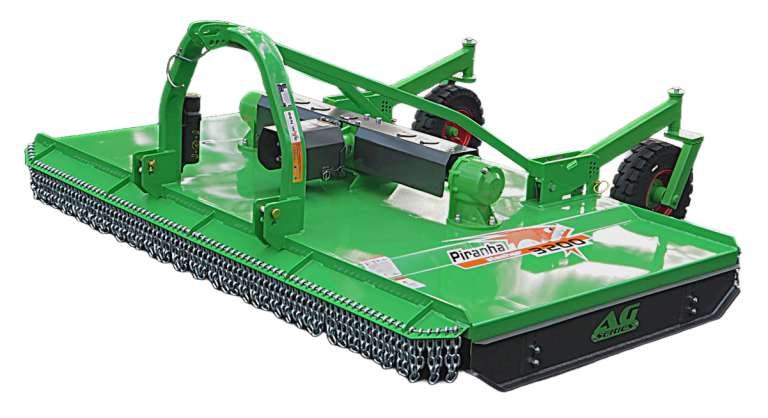

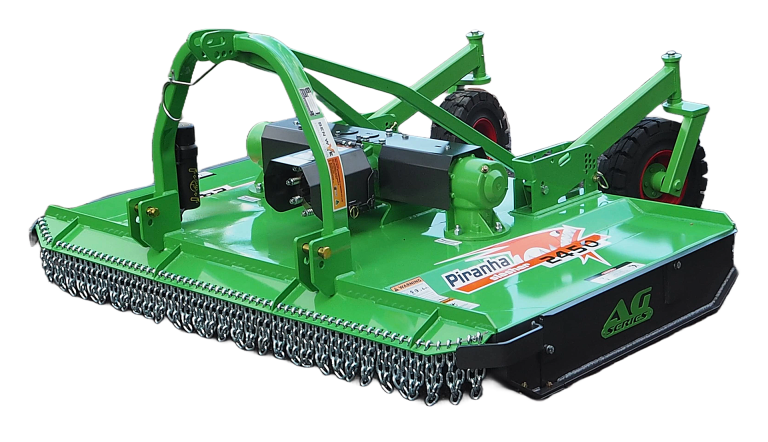

Piranha Twin Rotor – Pasture Topper Slasher’s
Twin Rotor Heavy Duty Pasture Toppers are designed for taking Trash & seed head off taller pastures. Pasture topping achieves valuable grass seed reduction for next years crop. The models are suitable for 50-150hp PTO tractor range and come in 2 different sizes which have the following features.
- One piece folded and fully reinforced HU300 grade 4mm or 350 grade 5mm main deck with a easy clean top design.
- Dual Category pick up pins Cat 1 & 2 with slotted link for contour following.
- Heavy duty rolled hollow section headstock with RHS rear support arms for ultimate deck strength which is available in either Centre Mount , Offset or double headstock.
- Drive line is protected by either a 2 or 4 plate friction slip clutch , and is covered by a hinged flip up cover for easy PTO attaching and serviceability.
- Zinc plated 10mm Front and rear safety chain curtains with wire rope replacement system.
- Choice of 80hp T-Box with two 75hp Rotor Gearboxes or 150hp T-Box with 130hp Rotor Gearboxes.
- Gearboxes have precision cut case hardened gears with high quality tapered roller bearings used through-out.
- Laminated spring steel blade beam with hardened dip down twisted mulching blades on a hardened swing back bush.

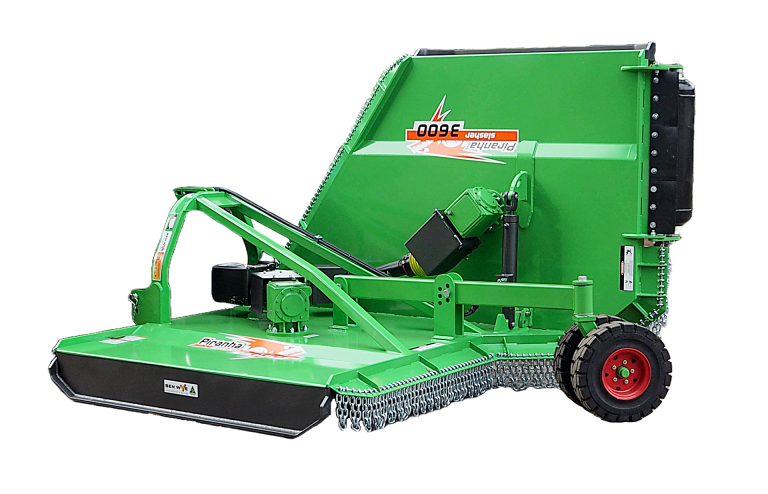

Piranha Twin Rotor – Single Wing Slasher 3600
The Single Wing slasher is a hybrid slasher and is designed for road side contractors, and tight area access. It has the versatility of folding up to transport width without leaving the tractor seat and the single wing floats independently up to 30 degrees and down to 15 degrees over uneven terrain to give a uniform cut. It is also a three point linkage mount for tight areas but must be married to a suitable tractor to enable safe operation.
- The standard model is a 3600.
- The hydraulic wing fold up to 90 degrees for transport which are protected by an integral anti drop valve for ultimate safety.
- Folds up under 2400mm for road transport and truck loading.
- Independent floating 2 piece deck floats up 30 degrees and down 15 degrees for undulating ground and a uniform cut.
- Standard gearboxes are (@540rpm) 150hp three way divider driving 2 x 130hp rotor gearboxes.
- All gearboxes shafts are 1 ¾ 20 spline for exceptional torque transmission.
- Heavy duty adjustable wing turn buckles.
- Full length stainless steel hinge pin provide greater strength and durability.
- The main bodies are three piece construction folded and fully reinforced HA 350 grade Australian made plate and tube.
- Come standard with 10mm front and rear zinc plated chain curtain with wire rope replacement system.
- All piranha slashers comply with the Australian Industry standards November 2011.
- Piranha Flexwing come with an Exclusive 2 Year Warranty.
- All Piranha Flexwing Slashers are Australian made and owned.

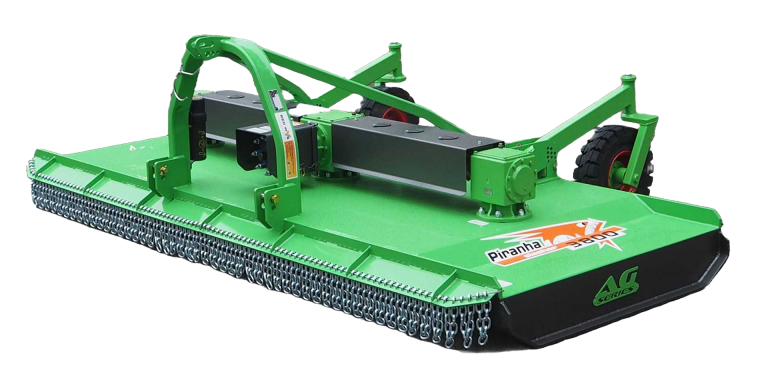

Piranha Triple Rotor – Flat Deck Slasher’s
Triple Rotor Slashers come in two different body types—flat deck for pasture cutting or flat orchards, or three piece winged units for following the contours of V or U shaped ground. They come standard with a 150hp transmission kit and cater for the 50hp—150hp PTO tractor range. There are 5 standard models which have the following features.
- Available in three point linkage or trailed level lift.
- Heavy duty construction for superior strength and durability.
- RHS Headstock and rear arms for Superior strength.
- Drive line is an 8 series trilobal profile protected by a 4 plate friction slip clutch , and is covered by a hinged flip up cover for easy PTO attaching and serviceability.
- Laminated spring steel blade beam with hardened dip down twisted mulching blades on a hardened swing back bush.
- 150hp-130hp gearboxes have precision cut case hardened gears with high quality tapered roller bearings used through-out.
- Zinc plated 10mm Front and rear safety chain curtains with wire rope replacement system.

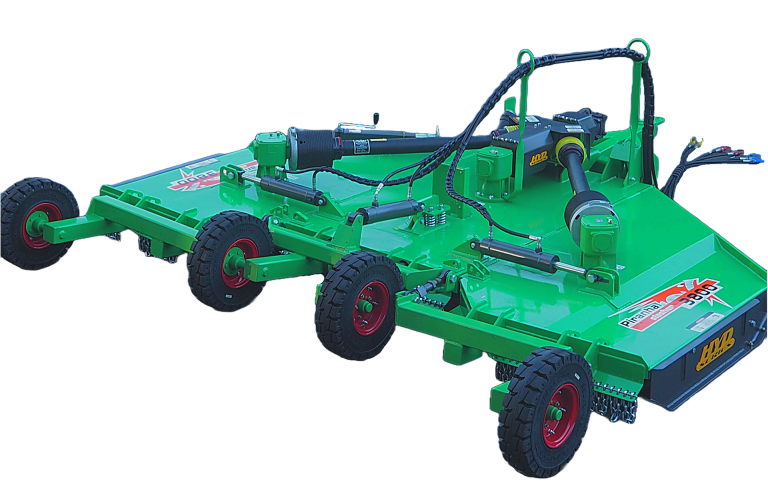

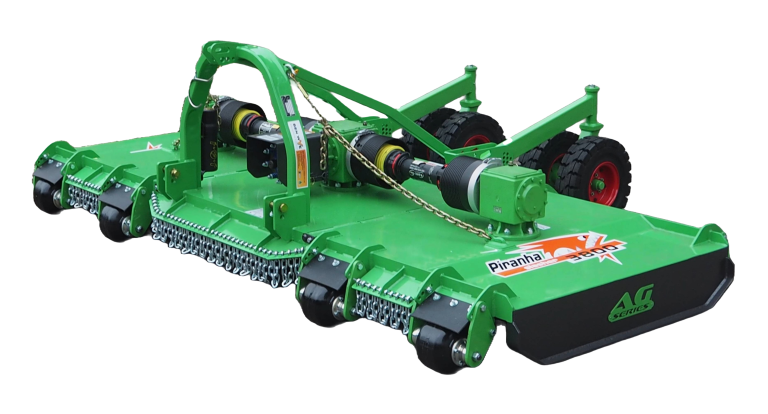

Piranha Triple Rotor – Winged Slasher’s
Triple Rotor winged Slashers are three piece winged units for following the contours of V or U shaped ground. They come standard with a 150hp transmission kit and cater for the 50hp—150hp PTO tractor range. There are 5 standard models which have the following features.
- Available in three point linkage or trailed level lift.
- 3 piece winged construction to follow the ground contours of U or V shaped ground.
- Heavy duty construction for superior strength and durability.
- Full length stainless steel hinge pins provide greater strength and durability.
- RHS Headstock and rear arms for Superior strength.
- Drive line is an 8 series trilobal profile protected by a 4 plate friction slip clutch , and is covered by a hinged flip up cover for easy PTO attaching and serviceability.
- Laminated spring steel blade beam with hardened dip down twisted mulching blades on a hardened swing back bush.
- 150hp-130hp gearboxes have precision cut case hardened gears with high quality tapered roller bearings used through-out.
- Zinc plated 10mm Front and rear safety chain curtains with wire rope replacement system.

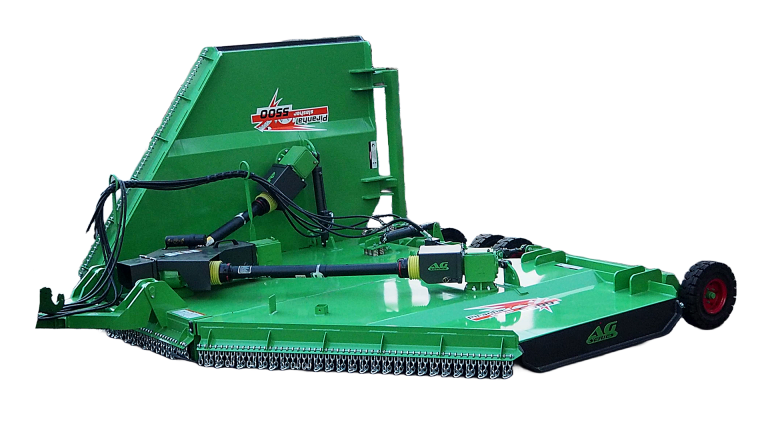

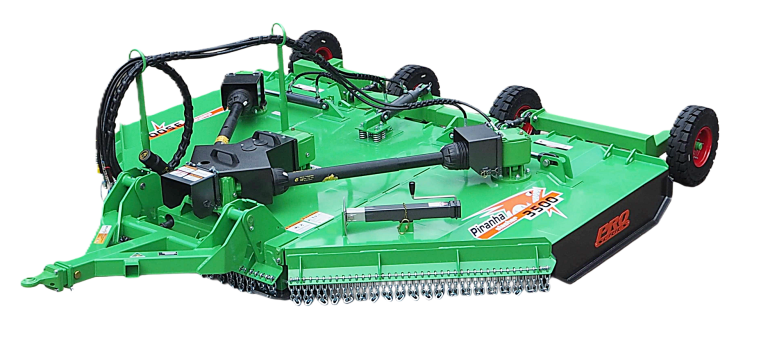

Piranha Triple Rotor – Flex-Wing Slasher’s
Flexwing slashers are available in 3 standard widths and are designed for cutting wide areas, mounded orchards, road verges and just about anything else.
They have the versatility of folding up to transport width without leaving the tractor seat and the wings float independently up to 30 degrees and down to 15 degrees over uneven terrain to give a uniform cut.
Couple that together with a mechanical level lift system with fine adjustable hydraulic cylinder mounted on spring suspension, 150mm blade overlap with updraft blades and you have one of the most versatile and heavy duty Australian made rotary cutters on the market.
- Standard models are the Flexwing 4500,5000 and the 5500.
- Hydraulic wings fold up to 90 degrees for transport which are protected by an integral anti drop valve for ultimate safety.
- All models fold up under 2400mm for road transport and for getting through gates.
- Independent floating 3 piece deck floats up 30 degrees and down 15 degrees for undulating ground and a uniform cut.
- Standard gearboxes are (@540rpm) 150hp three way divider driving 3 x 130hp rotor gearboxes.
- All gearboxes shafts are 1 ¾ 20 spline for exceptional torque transmission.
- Hydraulic over mechanical level lift trailing unit with heavy duty adjustable wing turn buckles.
- Spring shock absorber on wheel cylinder provides smooth operation while reducing shock loads to the main frame.
- Full length stainless steel hinge pins provide greater strength and durability.
- The main bodies are three piece construction folded and fully reinforced HA 350 grade Australian made plate and tube.
- Come standard with 10mm front and rear zinc plated chain curtain with wire rope replacement system.
Piranha Quad Rotor Slasher’s
Quad Rotor Slashers come in a standard flat deck for pasture cutting or for single pass mowing in almonds, olives, macadamias or any other wide planted crops. They come standard with a 150hp transmission kit and cater for the 70hp-150hp PTO tractor range. There are 3 standard models which have the following features.
- One piece folded and fully reinforced HU300 grade 5mm plate.
- Trailed level lift with fine adjustable hydraulic cylinder with large flotation wheels.
- Zinc plated 10mm Front and rear safety chain curtains with wire rope replacement system.
- Drive line is protected by a 4 plate friction slip clutch , and is covered by a hinged flip up cover for easy PTO attaching and serviceability.
- Laminated spring steel blade beam with hardened dip down twisted mulching blades on a hardened swing back bush.
- 150hp—130hp Gearboxes have precision cut case hardened gears with high quality tapered roller bearings used through-out.
- All gearbox shafts are 13/4 20 spline for exceptional torque transmission.

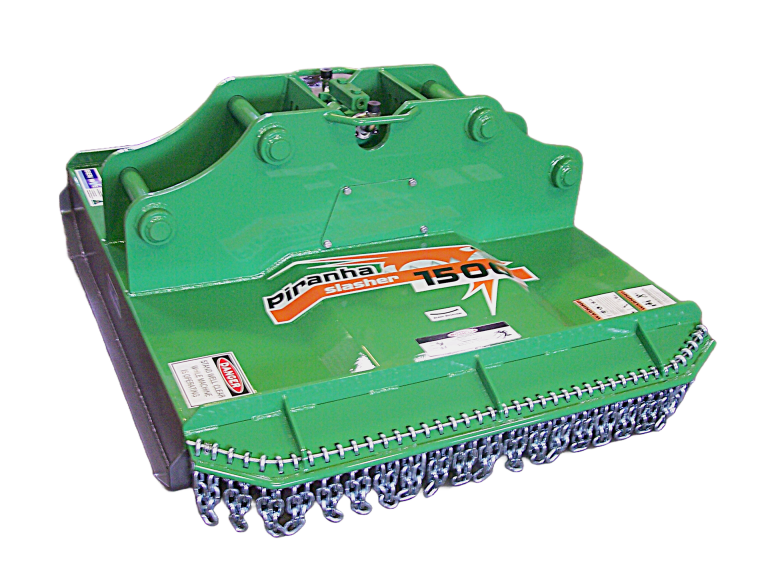

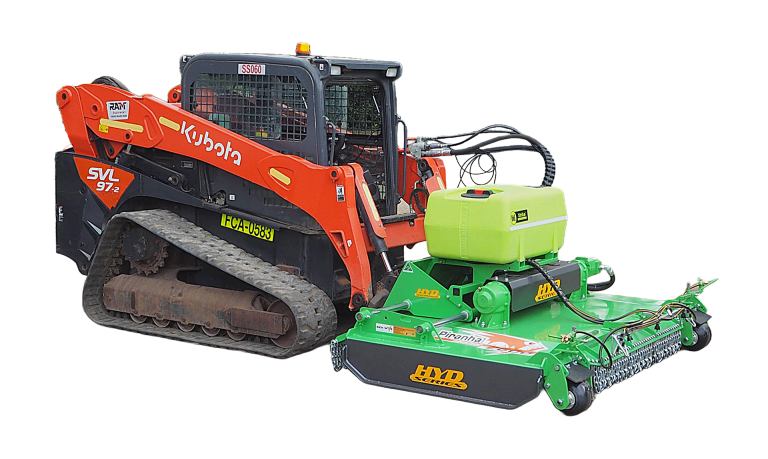

Piranha Hydraulic Slasher’s – Customised Models
With the larger capacities of today’s hydraulic machinery Ben Wye Engineering has designed a range of hydraulic slashers to suit Skid Steers, Loaders, Tractors & Harvesters. As there are several makes and models on the market of all these machines, hydraulic units are customised to suit that particular machine.
- Min 50ltr/min.
- Heavy duty pick ups fabricated to suit most machines.
- 4-6mm decks depending on the environment.
- Direct 1:1 drives through to 1:1.93 increase drives.
- Laminated spring steel blade beams or Bis plate disk rotors.
- High quality torque or gear motors.
- Overrun check valves hard piped standard.
- Cross line Relief valves (depending on application).
UNDER-HARVESTER SLASHERS
With the mechanicalisation of vineyards and the use of harvesters has bought a new era in vineyard maintenance. With the harvester you can half your operator time by cutting two rows at once, make full use of your investment by turning your harvester into a year round implement.
EXCAVATOR SLASHERS
Excavator slashers are an extremely useful tool in inaccessible areas and give the operator a huge reach to clean up creek beds steep ground and around obstacles. With Ben Wye engineering and design’s exclusive direct drive hydraulic drive slashers you can eliminate the need for coupling of the hydraulic motor to shafts, thus saving room, components and the need for guarding of the rotating parts. Maintenance becomes easier and alignment is precise. These twin rotor units are ideal on skid steer or loader attachment as they give a greater width to depth ratio.
