Forkmasts

Australian-Made Strength & Innovation for Agricultural Lifting

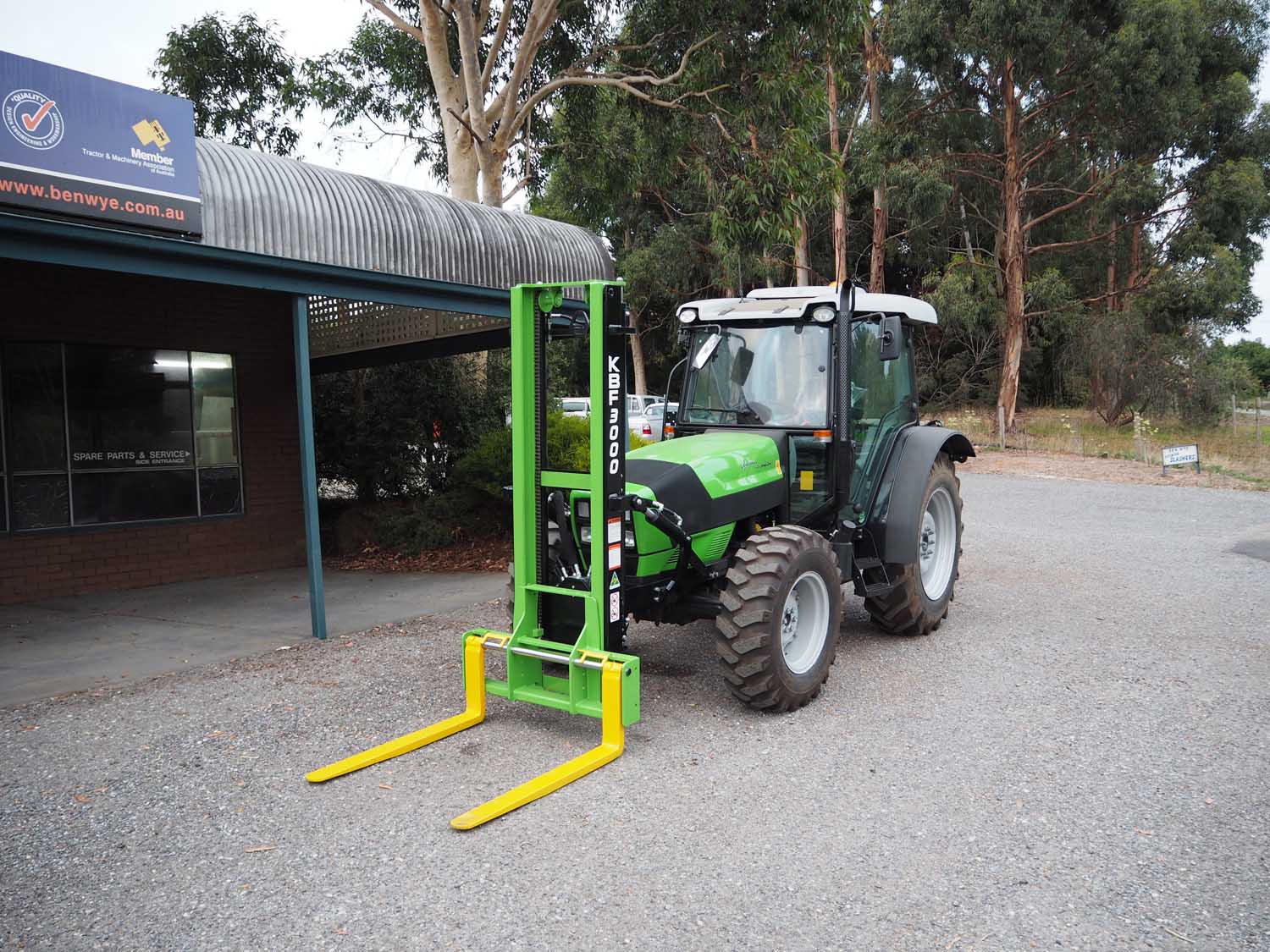

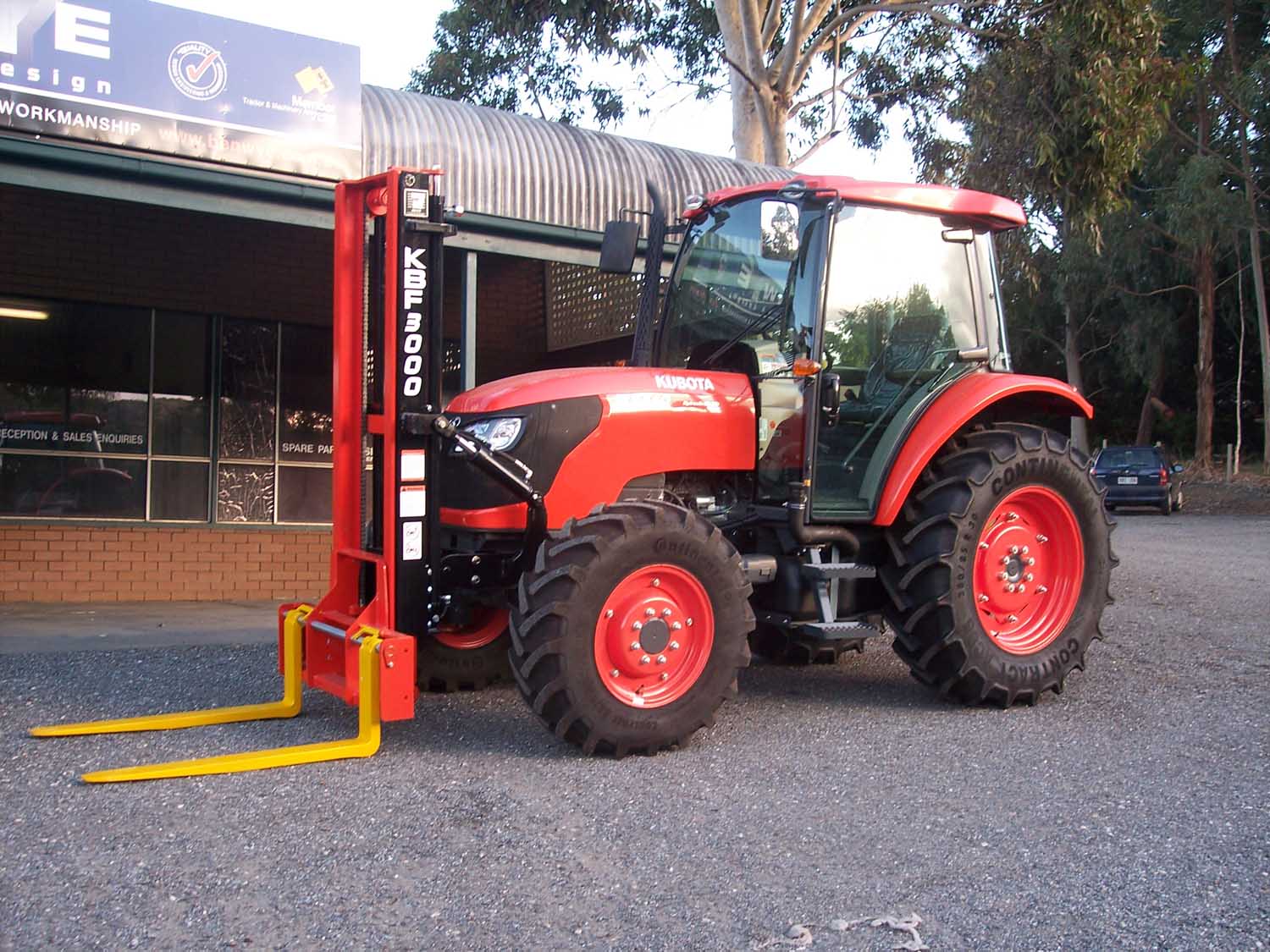

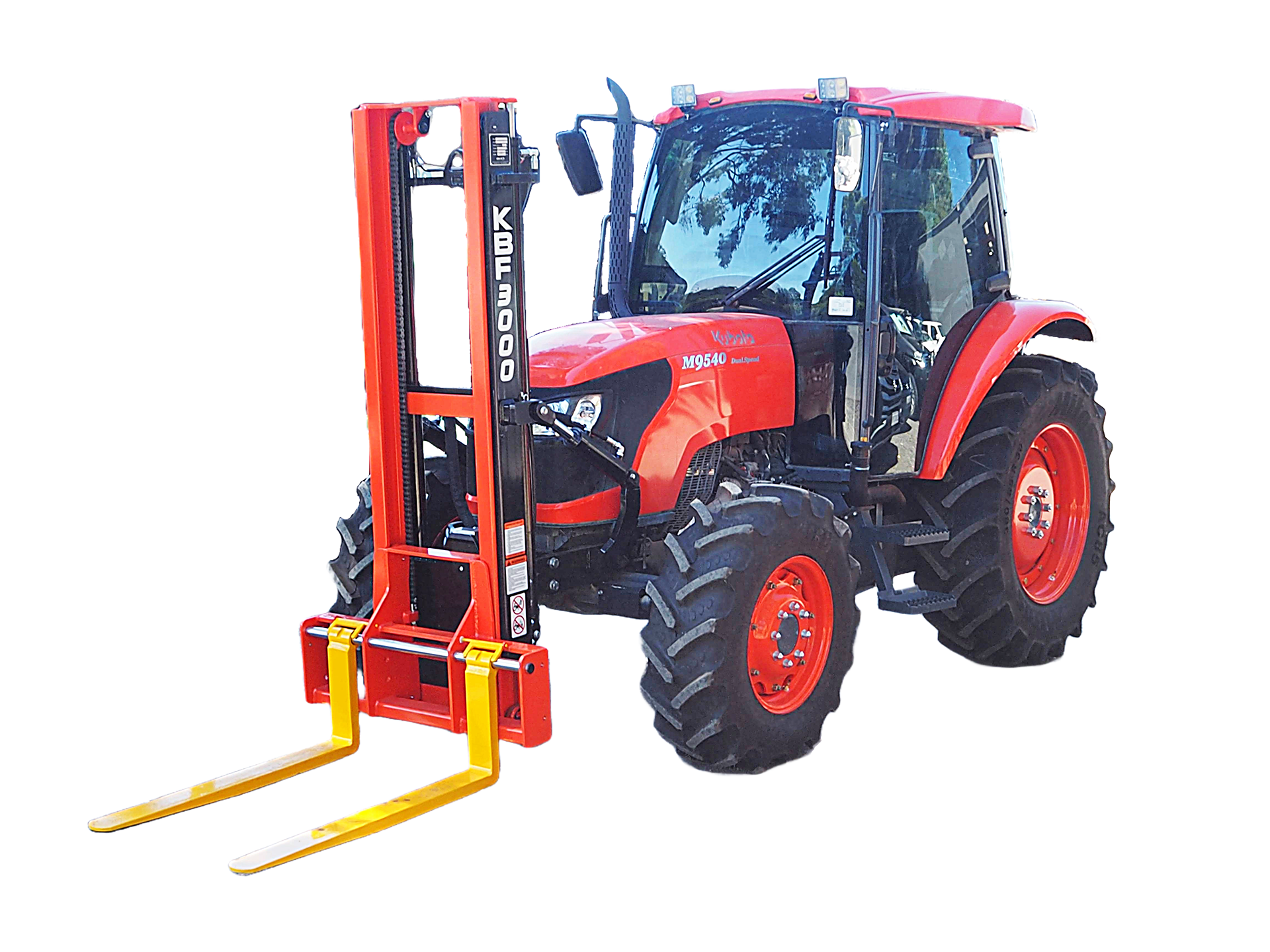

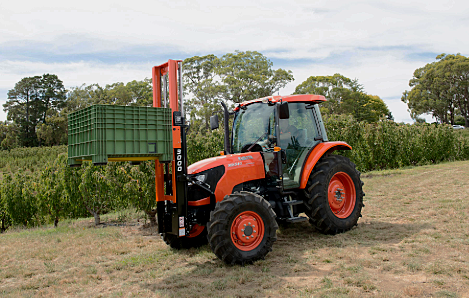

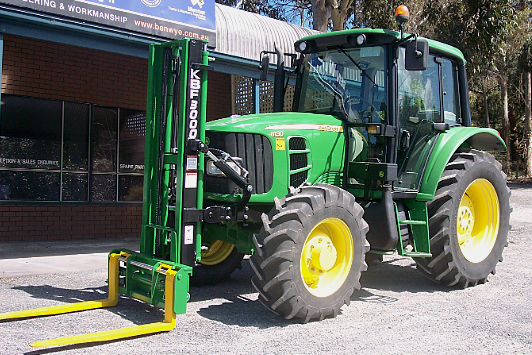

The KBF Forklift range includes three standard models with 6ft, 8ft, and 10ft lift capacities, designed to meet the demanding requirements of orchards, vineyards, contractors, and agricultural operations.

These forklifts feature a Clearview two-stage mast design, ensuring excellent visibility, and a hot-rolled industrial mast section for superior strength. Combination bearings provide enhanced load handling, while hydraulic tilt rams and an integrated safety relief valve ensure smooth, stable operation. With a wide range of optional extras, the Ben Wye KBF Forklifts offer unmatched versatility and reliability for heavy-duty agricultural lifting.

Designed and manufactured in Australia, Ben Wye KBF Forklifts are engineered to withstand tough agricultural conditions, ensuring exceptional performance and longevity.

Unmatched Strength & Precision

Industrial mast section with hot-rolled profiles, combination bearings, and reinforced fork tines for superior lifting capacity.

Optimised Operator Visibility

Clearview two-stage mast design with hydraulic lift cylinders tucked behind the profile, providing a clear line of sight for better control.

Customisable & Versatile

Available in three standard lift heights (6ft, 8ft, and 10ft) with a range of optional accessories to suit different applications.

Built for Durability & Safety

Heavy-duty construction, industrial lifting leaf chain, and a built-in hydraulic safety relief system ensure long-term reliability.

Features

Three Standard Two-Stage Masts (1500kg Rated):
- 1800mm (6ft) lift

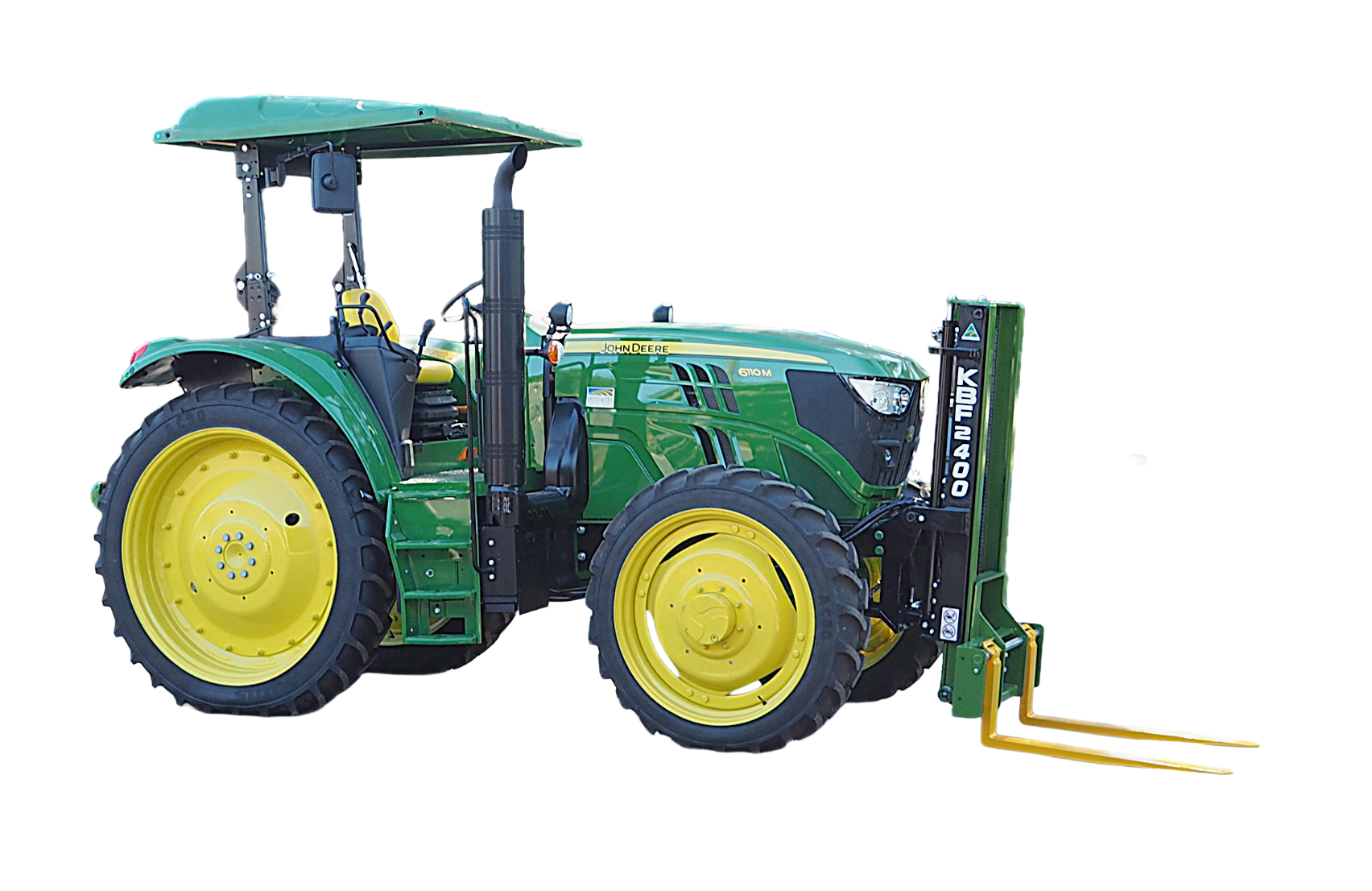

- 2400mm (8ft) lift
- 3000mm (10ft) lift
Main Mast Construction:
- Clearview design for excellent operator visibility
- Precision hot-rolled I&C profile channel for maximum strength
- Industrial lifting leaf chain for double the lifting capacity of standard roller chains
- Combination bearings minimize mast wear and sway
Fork Tines:
- Industrial pin-eye fork tines for better flexibility on uneven ground
- Fold-back design for easy transport
- Mounted on 38.1mm 1045 chrome-plated rod for smooth adjustment
- Each fork tine rated at 1800kg
Mast Carriage & Lifting System:
- Lowered design for better fork tip visibility
- Fork tines drop under the carriage for better clearance & wear reduction
- Two hydraulic tilt rams for improved balance and stability
Hydraulics & Control Options:
- 2 x 2-inch lift cylinders & 2 x 2.5-inch tilt cylinders with hardened chrome piston rods
- Purpose-built hydraulic manifold with safety relief valve
- Multiple control options:
  - In-cab joystick
  - Third function electric controls
  - In-cab levers
  - Tractor remote control
  - Spool bank mounted on ROPS tractors

Explore our videos

Precision Engineering for Heavy Lifting

Model Specifications

1800
2400
3000

Feature
Technical Specifications
Lift Height	1830mm
Mast Height (Down)	1665mm**
Weight	390Kg
Lift Capacity @ 500mm Centres	1500kg*
Hydraulics required	18-60ltr/min
Fork tyne (L x W x Thickness)	1070x 100x40
Fork tyne rating	1800kg
Tilt Range (Forward/Back)	11/11
Ground Clearance	475mm**

Feature
Technical Specifications
Lift Height	2400mm
Mast Height (Down)	1970mm**
Weight	440Kg
Lift Capacity @ 500mm Centres	1500kg*
Hydraulics required	18-60ltr/min
Fork tyne (L x W x Thickness)	1070x 100x40
Fork tyne rating	1800kg
Tilt Range (Forward/Back)	11/11
Ground Clearance	475mm**

Feature
Technical Specifications
Lift Height	3050mm H4
Mast Height (Down)	2275mm**
Weight	480kg
Lift Capacity @ 500mm Centres	1500kg*
Hydraulics required	18-60ltr/min H8
Fork tyne (L x W x Thickness)	1070x 100x40
Fork tyne rating	1800kg
Tilt Range (Forward/Back)	11/11
Ground Clearance	475mm**

Factory Options

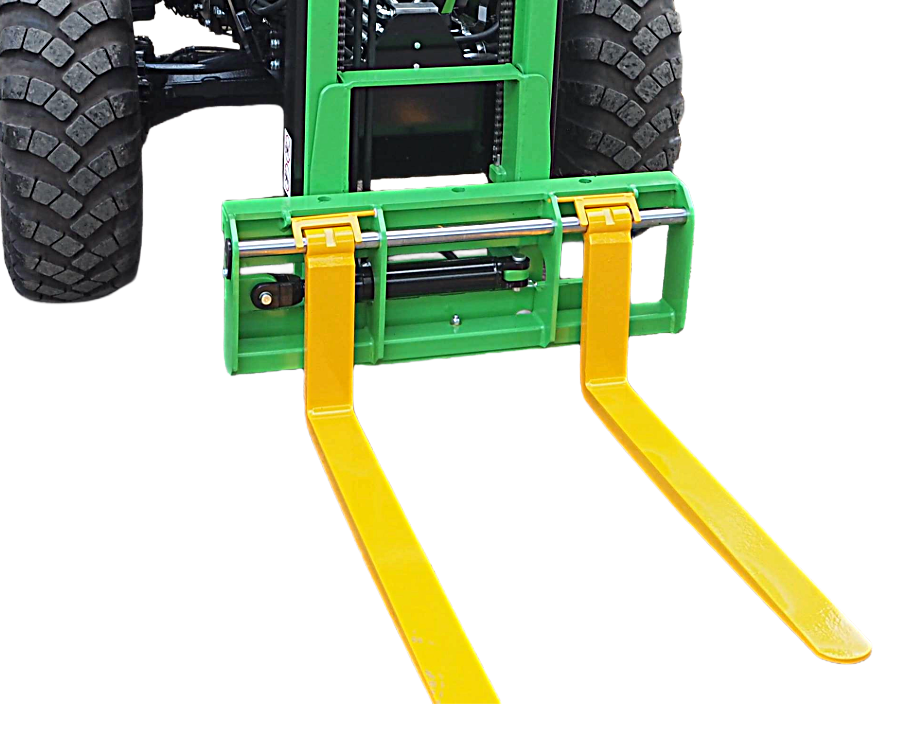

Hydraulic side shift

Bolt on high back frames

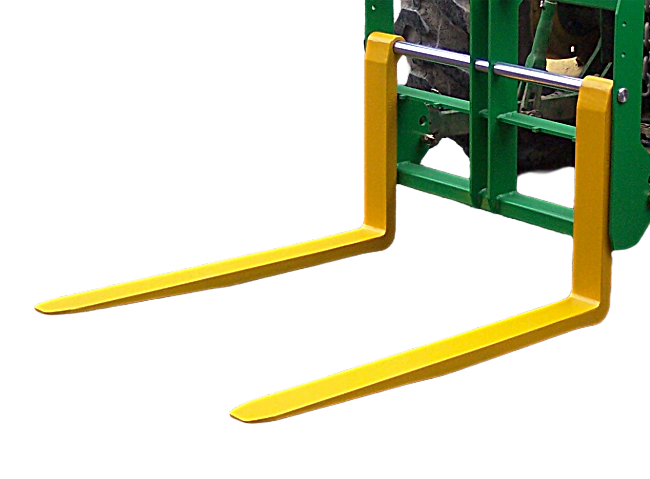

Long drop fork tines

Mast-mounted LED spotlights

Three point linkage rear mount

TPL weight boxes
