Pallet Forks

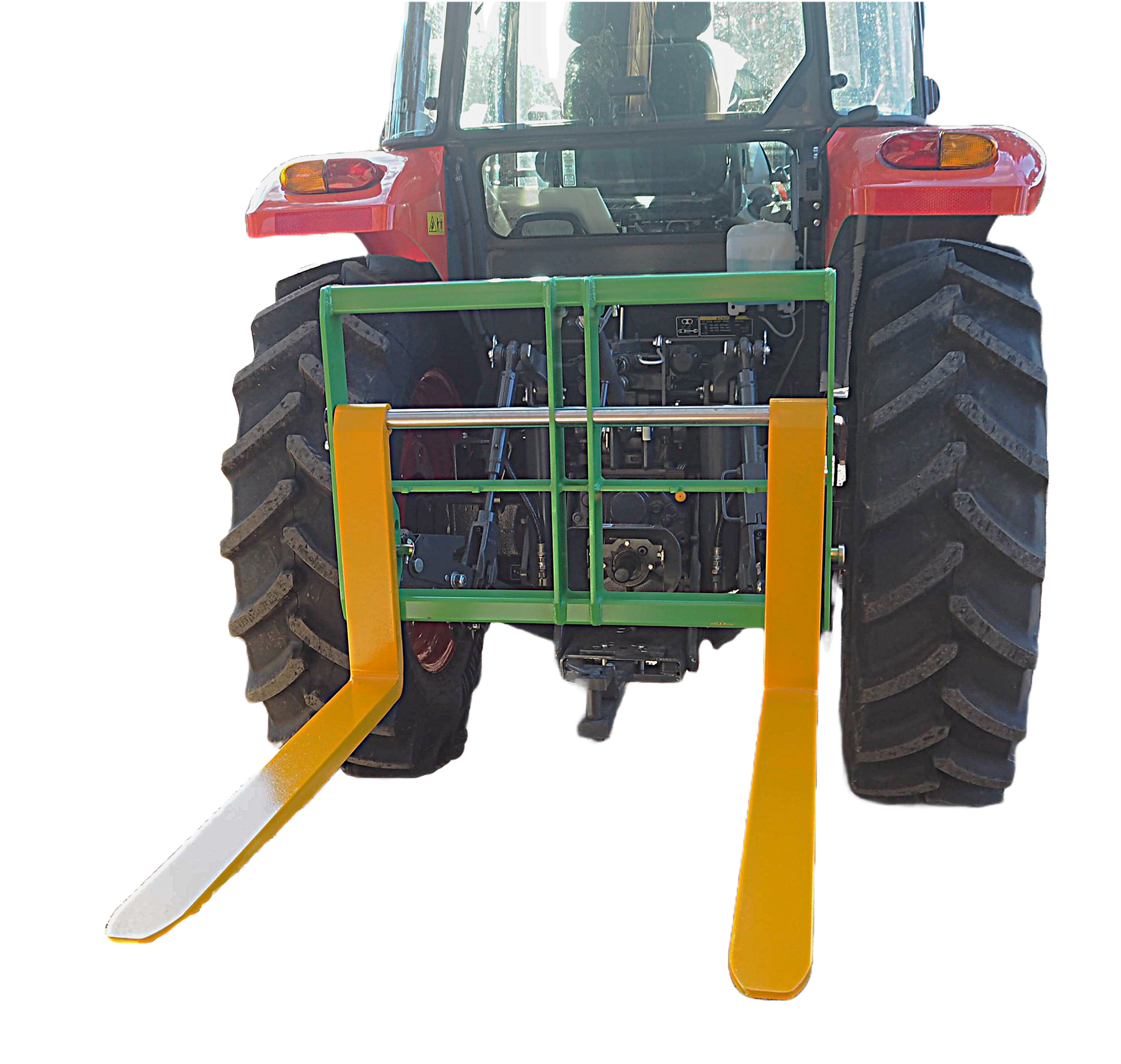

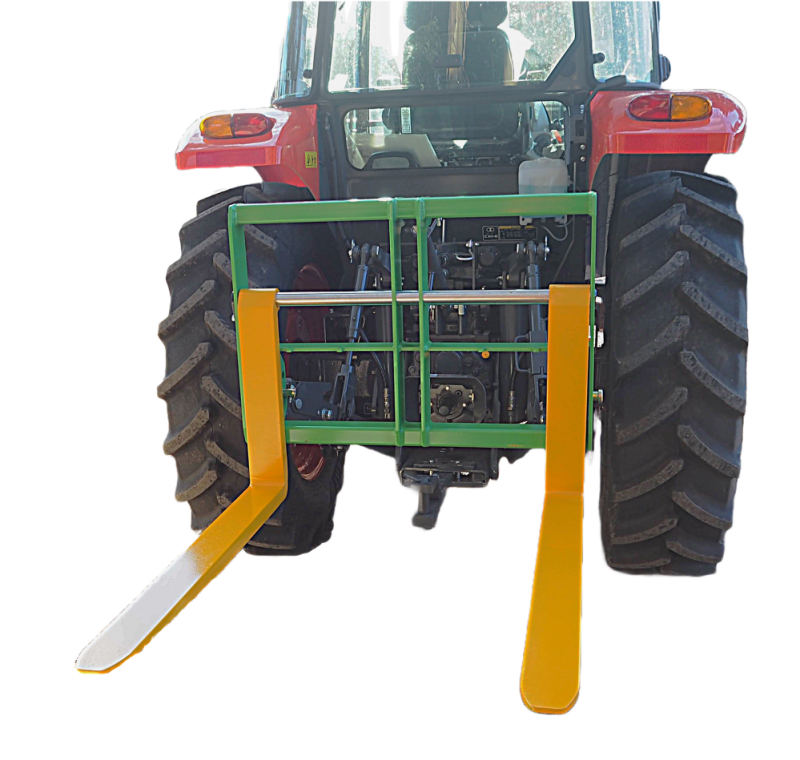

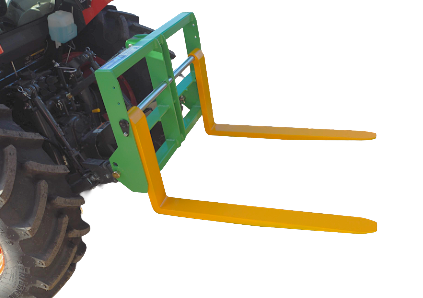

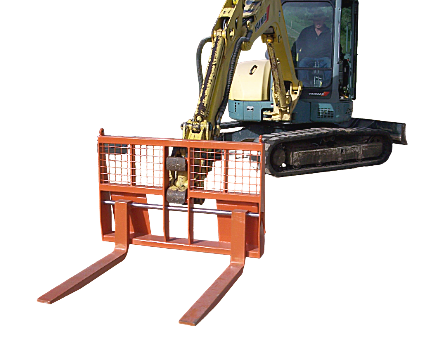

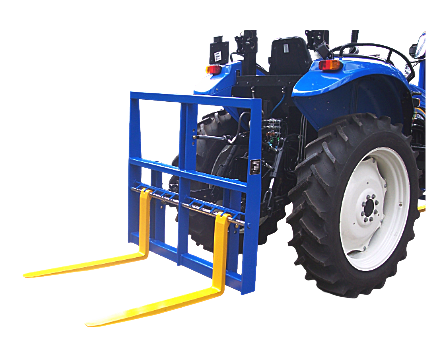

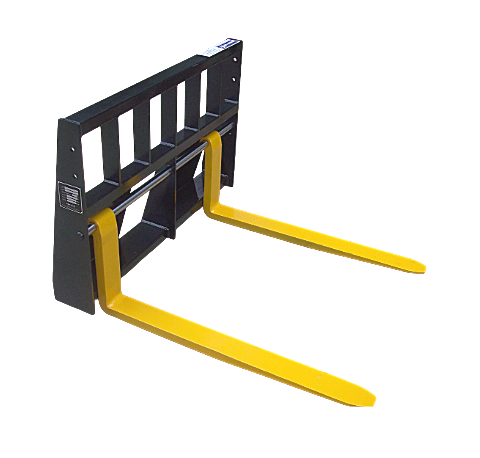

Ben Wye Engineering have a range of pallet forks available to suit tractor three point linkages, skid steer applications, loaders and telehandlers.

Industrial mast section with hot-rolled profiles, combination bearings, and reinforced fork tines for superior lifting capacity.

Clearview two-stage mast design with hydraulic lift cylinders tucked behind the profile, providing a clear line of sight for better control.

Available in three standard lift heights (6ft, 8ft, and 10ft) with a range of optional accessories to suit different applications.

Heavy-duty construction, industrial lifting leaf chain, and a built-in hydraulic safety relief system ensure long-term reliability.

Three Standard Two-Stage Masts (1500kg Rated):
- 1800mm (6ft) lift
- 2400mm (8ft) lift
- 3000mm (10ft) lift
Main Mast Construction:
- Clearview design for excellent operator visibility
- Precision hot-rolled I&C profile channel for maximum strength
- Industrial lifting leaf chain for double the lifting capacity of standard roller chains
- Combination bearings minimize mast wear and sway
Fork Tines:
- Industrial pin-eye fork tines for better flexibility on uneven ground
- Fold-back design for easy transport
- Mounted on 38.1mm 1045 chrome-plated rod for smooth adjustment
- Each fork tine rated at 1800kg
Mast Carriage & Lifting System:
- Lowered design for better fork tip visibility
- Fork tines drop under the carriage for better clearance & wear reduction
- Two hydraulic tilt rams for improved balance and stability
Hydraulics & Control Options:
- 2 x 2-inch lift cylinders & 2 x 2.5-inch tilt cylinders with hardened chrome piston rods
- Purpose-built hydraulic manifold with safety relief valve
- Multiple control options:
  - In-cab joystick
  - Third function electric controls
  - In-cab levers
  - Tractor remote control
  - Spool bank mounted on ROPS tractors
